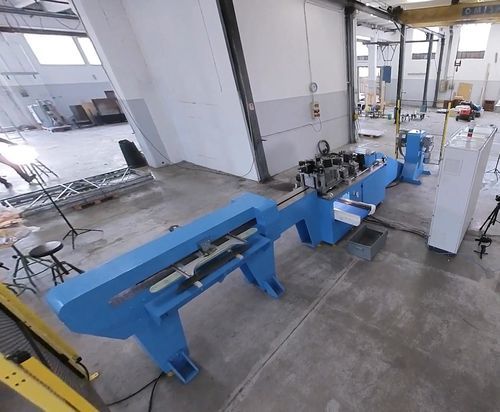

Metal strip slitting line LT 250 DUALsheet metalfor thin sheet metalhigh-precision
Add to favorites
Compare this product
Characteristics
- Other characteristics
- metal strip, sheet metal, for thin sheet metal, high-precision, coil-fed
Description
Description
Machine designed to cut step‑lap 45° cores and, at the same time, conventional 90° cores. The LT 250 DUAL is fitted with an ultra‑compact palletizer that produces neat, precise stacks.
Details
Category: Slitting lines for transformer cores
Features
Key advantages
Technical specifications
Machine designed to cut step‑lap 45° cores and, at the same time, conventional 90° cores. The LT 250 DUAL is fitted with an ultra‑compact palletizer that produces neat, precise stacks.
Details
Category: Slitting lines for transformer cores
Features
- Sheet width: min 50 mm / max 450 mm
- Strip thickness: min 0.18 mm / max 0.35 mm
- Strip feeding speed: 230 m/min
- Cutting tolerance: ± 0.1 mm
- Noise level: very low, below 78 dB
Key advantages
- Line engineered for cutting oriented-grain magnetic steel, ideal for manufacturing magnetic cores for step‑lap 45° and 90° transformers.
- High performance and reliability thanks to the manufacturer's continuous R&D.
- Simple operation and easy maintenance for industrial production environments.
- Reduced footprint: occupies approximately half the space of competing machines, optimising plant layout.
- X cutting technology that compacts and simplifies the machine mechanics.
- Use of advanced electronic technologies, such as brushless motors, replacing traditional hydraulic punching cylinders.
- Noise reduction and improved energy efficiency thanks to brushless motor technology.
- Base configuration can be customised to fully meet customer requirements.
Technical specifications
- Sheet width: min 50 mm / max 450 mm
- Strip thickness: min 0.18 mm / max 0.35 mm
- Strip feeding speed: 230 m/min
- Cutting tolerance: ± 0.1 mm
- Noise level: very low, below 78 dB
