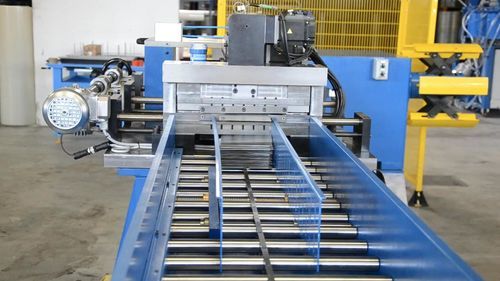

Steel cut-to-length cutting line LT 200 90°sheet metalwebhole punch
Add to favorites
Compare this product
Characteristics
- Material
- for steel
- Product handled
- sheet metal, web
- Associated function
- hole punch
- Configuration
- compact, multi-head
- Other characteristics
- cut-to-length, high-speed, for metal strips, 90°, electrically-powered
- Cutting speed
Max.: 3.833 m/s
(12.575 ft/s)Min.: 0 m/s
(0 ft/s)- Repeatability
0.1 mm
(0.0039 in)- Minimum width
Max.: 250 mm
(10 in)Min.: 40 mm
(2 in)
Description
Description
Cutting line for grain-oriented and non-oriented electrical steel laminations used in transformer magnetic cores. Very compact machine, simple to operate and maintain. Configurable with 1, 2 or 4 uncoilers. Equipped with a motorized roller conveyor for palletizing the cut laminations. Customizable punching units; punching diameter selectable from Ø8 to Ø23 mm. Machine without hydraulic circuits; punch and shear feed completely electric (brushless motors).
Details
Category: Cutting lines for transformer cores
Features
Strengths
Technical specifications
Cutting line for grain-oriented and non-oriented electrical steel laminations used in transformer magnetic cores. Very compact machine, simple to operate and maintain. Configurable with 1, 2 or 4 uncoilers. Equipped with a motorized roller conveyor for palletizing the cut laminations. Customizable punching units; punching diameter selectable from Ø8 to Ø23 mm. Machine without hydraulic circuits; punch and shear feed completely electric (brushless motors).
Details
Category: Cutting lines for transformer cores
Features
- Tape width min: 40 mm, max: 250 mm
- Sheet thickness: 0.23 mm - 0.35 mm
- Sheet feed speed: 0 - 230 m/min
- Minimum punching heads: 2
- Cutting tolerance ±0.1 mm
- Maximum noise level: 78 dB
Strengths
- Low noise level
- High speed
- Easy to operate
- Reduced maintenance times
Technical specifications
- Model: LT 200 90°
- Uncoiler configuration: 1, 2 or 4
- Tape width: 40 mm - 250 mm
- Sheet thickness: 0.23 mm - 0.35 mm
- Sheet feed speed: 0 - 230 m/min
- Minimum number of punching heads: 2
- Punching diameter available: Ø8 mm - Ø23 mm
- Cutting tolerance: ±0.1 mm
- Maximum noise level: 78 dB
- Motorized roller conveyor for palletizing the cut laminations
- No hydraulic circuits; punch and shear feed completely electric with brushless motors
- Compact design, easy operation and maintenance
