Drying operation air wipe 453

for cleaningfor pipesfor cables

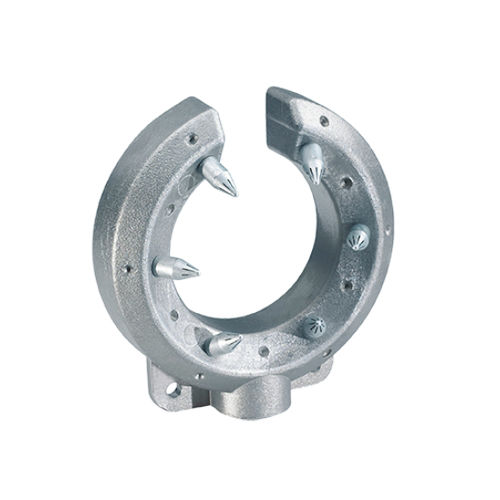

SILVENT 453: the smallest version of Silvent’s doughnut nozzles with just an inner ring of nozzles. This is our most commonly used type of doughnut nozzle. Finding the blowing pattern that is most suitable for the majority of blow-off processes is the result of years of experience with previous generations of doughnut nozzles. These nozzles are designed for continuous production and the cleaning or drying of cables, sections, pipes, hoses etc. The SILVENT 453 allows problem-free insertion and removal of material with diameters of 5 mm to 25 mm (0.2”-1.0”). There are attachment lugs for easy and safe mounting. Technical data Replace open pipe Ø (mm) - 10 Blowing force (N) - 20.0 Air consumption (Nm³/h) - 114 Sound level (dB(A)) - 90 Nozzle technology - Slot Material (nozzle) - Zn Connection - G 1/2" Connection type - Female Weight (kg) - 0.2750 Max temp (°C) - 70 Replace open pipe Ø (inch) - 3/8 - Noise reduction - 22 [dB(A - 78% Energy savings - 41.8 [scfm] - 38% Material specification: Zn ZP0410 EN 1284, EN 1.0718 Fzb
