Drying nozzle 921
cleaningcoolingair

drying nozzle
drying nozzle
drying nozzle
drying nozzle
drying nozzle
Add to favorites
Compare this product


Characteristics

Function
cleaning, cooling, for drying
Fluid
air
Stream
flat spray
Material
zinc
Other characteristics
NPT, male
Pressure

Max.: 10 bar
(145 psi)

Min.: 0 bar
(0 psi)

Media temperature

Max.: 70 °C
(158 °F)

Min.: 0 °C
(32 °F)

Description

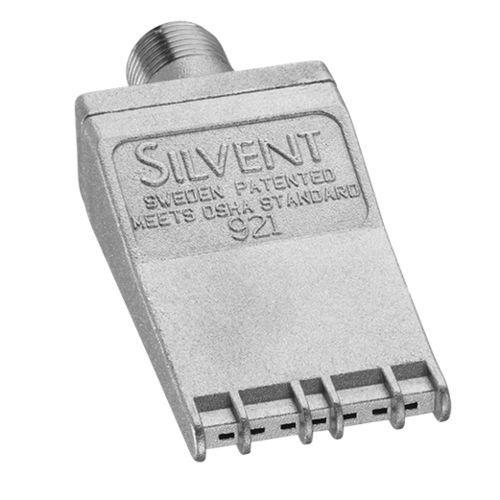

SILVENT 921: flat nozzle that generates a broad and efficient blowing pattern. Outstanding for use wherever a wide but thin striking surface is required. Flat nozzles are suitable for most areas of application, such as: drying, transporting, cooling, cleaning, etc. Often used in manifold systems, providing silent and highly efficient air knives. Made of zinc with 1/8" male connection thread. The exhaust ports are protected from external forces by fins. Technical data Replace open pipe Ø (inch) - 5/32 Blowing force - 10.6 oz Air consumption (scfm) - 10.0 Sound level (dB(A)) - 80 Nozzle technology - Slot Material (nozzle) - Zn Connection - NPT 1/8" Connection type - Male Weight (lbs) - 0.084
