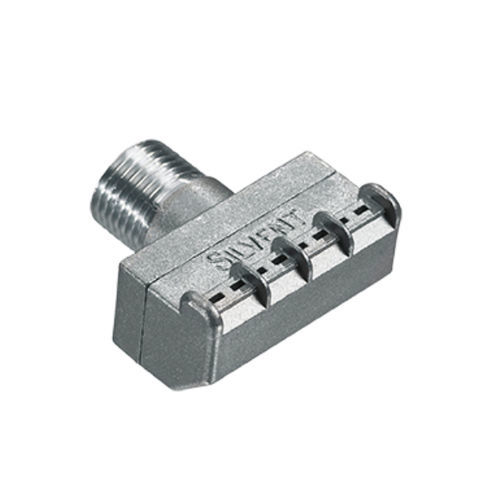

Blow-off nozzle 961
airflat sprayzinc

blow-off nozzle
blow-off nozzle
blow-off nozzle
blow-off nozzle
Add to favorites
Compare this product


Characteristics

Function
blow-off
Fluid
air
Stream
flat spray
Material
zinc
Other characteristics
compact, outlet
Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Media temperature

Min.: 0 °C
(32 °F)

Max.: 70 °C
(158 °F)

Description

SILVENT 961: a small, angled flat nozzle that generates a broad but thin blowing pattern. Small mounting dimensions make it especially suitable for machine designs where space limitations are a problem. In many cases mounting is facilitated by the fact that the blowing angle is perpendicular to the plane of the threads. Can also be mounted in a manifold array, creating compact, quiet and efficient air knives. The outlet orifices are protected against external forces by fins. Technical data Replace open pipe Ø (mm) - 4 Blowing force (N) - 3.3 Air consumption (Nm³/h) - 20 Sound level (dB(A)) - 82 Nozzle technology - Slot Material (nozzle) - Zn Connection - G 1/8" Connection type - Male Weight (kg) - 0.0180
