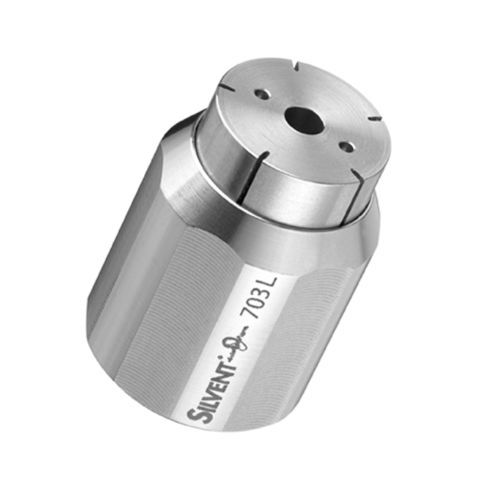

Blow-off nozzle 703 L
compressed airfull-conestainless steel

blow-off nozzle
blow-off nozzle
blow-off nozzle
blow-off nozzle
Add to favorites
Compare this product


Characteristics

Function
blow-off
Fluid
compressed air
Stream
full-cone
Material
stainless steel
Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Media temperature

Min.: 0 °C
(32 °F)

Max.: 400 °C
(752 °F)

Description

SILVENT 703 L is a stainless steel Laval nozzle. Compressed air is optimally used in this air nozzle, which introduced a whole new dimension to blowing technology. The effect is achieved by surrounding a core of air traveling at supersonic speed with a protective sheath of air moving parallel to the central air jet. The core stream in the 703 L is generated by a Laval nozzle. The design of the nozzle converts all of the energy stored in the compressed air into kinetic energy without permitting the air jet to expand laterally after it has passed through the nozzle. Because of the protective sheath of air, the surrounding air does not slow down the core stream, which can be used to full effect. The air flow prevents turbulence, thereby lowering noise levels. Technical data Replace open pipe Ø (mm) - 8 Blowing force (N) - 10.6 Air consumption (Nm³/h) - 60 Sound level (dB(A)) - 91 Nozzle technology - Laval Material (nozzle) - 1.4305 (303) Connection - G 1/2" Connection type - Female Weight (kg) - 0.0500 Noise reduction - 17 [dB(A - 69% Energy savings - 58 [Nm³/h] - 49%
