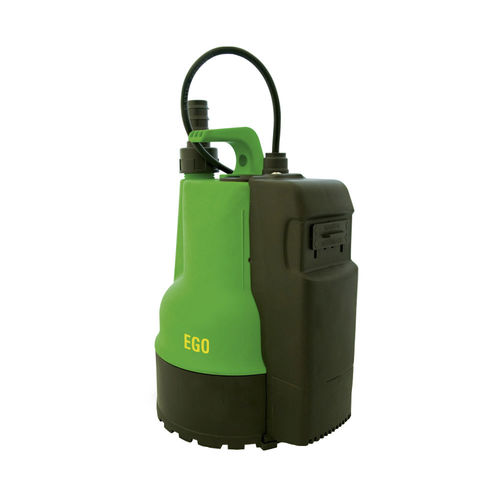

Impeller pump EGO 300waterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial, for water treatment, for agricultural applications
- Applications
- drainage
- Material
- plastic
- Voltage
- 380 V
- Other characteristics
- compact, automatic, variable-speed, with electronic control, small-size, for well, thermal protection, sensor
- Flow
Min.: 10 l/min
(2.64172 us gal/min)Max.: 130 l/min
(34.34237 us gal/min)- Pressure
Min.: 0.2 bar
(2.901 psi)Max.: 0.8 bar
(11.603 psi)- Head
Min.: 1 m
(3'03" )Max.: 8 m
(26'02" )- Power
0.27 kW
(0.37 hp)- Fluid temperature
35 °C
(95 °F)- Length
206 mm
(8 in)- Height
252 mm
(9.92 in)- Weight
4.5 kg
(9.92 lb)
Description
Single-phase motor 230V/50Hz with incorporated thermal protection with automatic reset.
MWater cooled motor with top discharge protects the pump from overheating even when partially submerged.
Liquid temperature in continuous operation service +35°C max.
Antioxidant and corrosion resistant materials.
Triple hydraulic seal on the shaft.
Suitable for clear or slightly dirty waters.
Open impellers for passage of soft solids of 4.5mm
Electric cables with different lengths and with indissoluble molded plugs.
