Regenerative turbine pump C 38
wateroilelectric

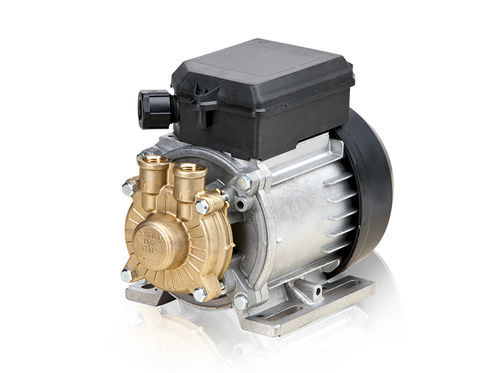

Regenerative turbine pump - C 38 - SIMACO ELETTROMECCANICA - water / oil / electric
Regenerative turbine pump - C 38 - SIMACO ELETTROMECCANICA - water / oil / electric
Regenerative turbine pump - C 38 - SIMACO ELETTROMECCANICA - water / oil / electric - image - 2
Add to favorites
Compare this product
Go to the SIMACO ELETTROMECCANICA website for more information

Characteristics

Technology
regenerative turbine
Fluid
water, oil
Operation
electric
Applications
transfer
Material
stainless steel, brass
Protection level
IP42
Flow

Min.: 0.5 l/min
(0.13209 us gal/min)

Max.: 18 l/min
(4.7551 us gal/min)

Pressure

Min.: 0.3 bar
(4.351 psi)

Max.: 6.5 bar
(94.275 psi)

Head

Min.: 40.5 m
(132'10" )

Max.: 49.5 m
(162'04" )

Power

Min.: 0.15 kW
(0.2 hp)

Max.: 0.2 kW
(0.27 hp)

Fluid temperature

Min.: -20 °C
(-4 °F)

Max.: 120 °C
(248 °F)

Input diameter

Min.: 6.35 mm
(0.25 in)

Max.: 6.35 mm
(0.25 in)

Output diameter

Min.: 6.35 mm
(0.25 in)

Max.: 6.35 mm
(0.25 in)

Weight

Min.: 3.8 kg
(8.38 lb)

Max.: 3.8 kg
(8.38 lb)

Description

C 38 is a brass peripheral (regenerative turbine) electric pump designed for industrial applications; it is suitable for pumping clear waters, oils and non-aggressive dilutions under continuous duty.

Technical specifications
  • Available versions / hydraulic & mechanical data
    • C 38 — Type: 3 ph; Pump absorbed power P2 (kW) 50Hz / 60Hz: 0,15 / 0,2; 50/60Hz dual: STD; DN (BSPP): 1/4; Qmax (50Hz): 11 (m3/h); Hmax (50Hz): 45 (m).
    • Cm 38 — Type: 1 ph; Pump absorbed power P2 (kW) 50Hz / 60Hz: 0,15 / 0,18; 50/60Hz dual: STD; DN (BSPP): 1/4; Qmax (50Hz): 11 (m3/h); Hmax (50Hz): 45 (m).
  • Main use: For clear waters, oils and non-aggressive dilutions; not suitable for fluids with abrasive suspensions.
  • Duty & motor: Continuous duty S1; 2-pole motor (standard).
  • Insulation & protection: Insulation class F; Protection IP42 (standard).
  • Operating tolerances & limits: Working tolerance +/-10%; maximum ambient temperature +40°C.
  • Fluid temperature ranges: Water dilutions (with anti-freeze additive) -20°C to +90°C; oil emulsions -20°C to +120°C. On request: special fluids up to < 180°C.
  • Priming: Not self-priming.
  • Materials: Body — CuZn (brass); Impeller — CuZn (brass); Shaft — AISI 420 stainless steel.
  • Weight: C 38 — 3,8 kg.
  • Performance / graphs: Hydraulic characteristics referenced to water at 20°C and nominal pump speed; tolerance according to ISO 9906-2012 (performance chart available on the product page).
  • Options / on request: Special voltages; 60Hz versions; special fluids (temperature < 180°C); other IP protection degrees; cRUus certified motors for selected voltages; Permanent Magnet Sensorless Motor (PMSM).


Functional features
  • Application: Transfer of clear waters, oils and non-aggressive dilutions without abrasive suspensions.
  • Operation: Continuous S1.
  • Motor: 2-pole (standard).
  • Insulation class: F.
  • Protection: IP42 (standard).
  • Operating tolerance: ±10%.
  • Not self-priming.
  • Maximum ambient temperature: +40°C.


Materials
  • Body: CuZn (brass).
  • Impeller: CuZn (brass).
  • Shaft: AISI 420 stainless steel.


Weight
  • C 38: 3,8 kg.


Performance notes
  • Performance curves referred to water at 20°C at nominal speed. Tolerances according to ISO 9906-2012.


Product data
  • Product name: C 38.
  • Versions: C 38 (3~), Cm 38 (1~).
  • P2 (kW) 50Hz/60Hz: C 38 = 0,15 / 0,2; Cm 38 = 0,15 / 0,18.
  • DN (BSPP): 1/4.
  • Qmax 50Hz: 11 m3/h.
  • Hmax 50Hz: 45 m.
  • Duty: S1 (continuous).
  • Motor: 2-pole.
  • Insulation: Class F.
  • Protection: IP42.
  • Main materials: body/impeller in CuZn, shaft in AISI 420.
  • Weight: 3,8 kg (model C 38).
  • Fluid temperature ranges: water dilutions -20°C / +90°C; oil emulsions -20°C / +120°C.
