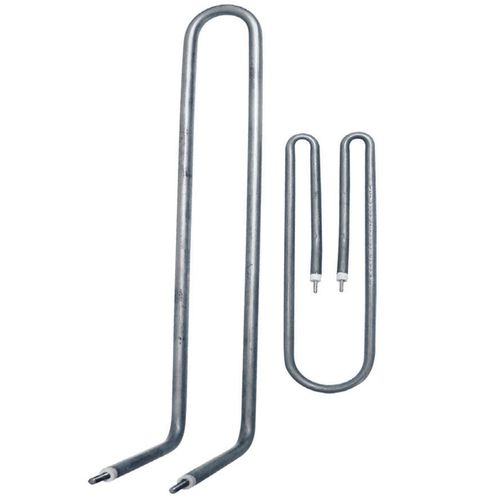

Tubular heating element GR series

aluminumstainless steelcopper

Tubular heaters are designed to work in air or liquid. Due to the possibility of any shape of the heating element, they are suitable for many applications. It is possible to build individual elements into very powerful heating units. The selection of materials for heating elements depends on the working conditions, i.e. working temperature, surface load, working environment. They are the most popular method of electric heating in the industry. Features: high and stable quality of electric parameters resulting from the central position of the heating coil, long life and stability of heater operating resulting from the use of homogeneous and dense insulation consisting of the highest quality magnesium oxide (MgO) as well as the use of the highest quality resistance wires, high surface loading and high allowable surface temperature of the tube resulting from the application of the highest quality stainless steel tubes. Specification Probe diameter - Ø6,4 mm Ø6,9 mm Ø8 mm Ø8,5 mm Ø10 mm Ø10,2 mm Ø13 mm Range of length - 200...3600 mm Power supply - 12V AC 220V AC 380V AC Operating temperature - max. 800°C Sensor material - Incoloy 800 steel Cr-Ni 1H18N9T carbon steel alloy steel copper brass
