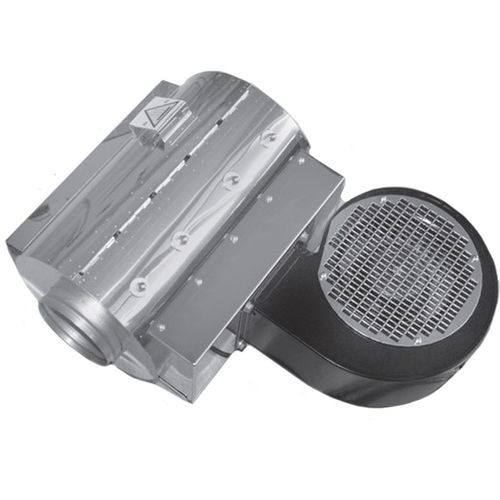

Cooler heater ZGH

granulescirculationcompact

used in used in extruder cylinders to plasticizing plastics replaceable heating inserts brass / steel heat sinks built-in fan improving thermodynamic properties of heater Heating / cooling units ZGH type are heaters used to plasticize plastics. The construction of the extruder is based on ceramic heating inserts equipped with brass / steel heat sinks, the whole is closed in a steel housing. A fan is mounted to the unit, which regulates the temperature through the appropriate hot air outlet system. All parameters: voltage, power, set dimensions are agreed individually with the customer. Application: extruder cylinders. Specification Probe diameter - Ø16 mm Ø32 mm Ø36 mm Ø45 mm Ø50 mm Power supply - 230V AC 380V AC 380V AC, three-phase 400V AC Surface loading - 7 W/cm²
