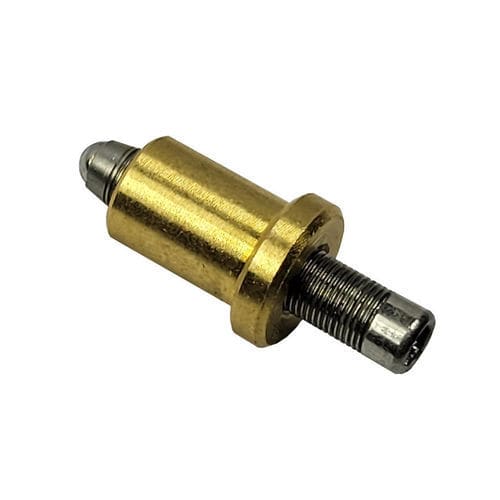

Cylindrical head screw 4-100hex socket
Add to favorites
Compare this product
Characteristics
- Head
- cylindrical head
- Drive type
- hex socket
Description
The 4-100 Series Adjustment Screw is designed for precise adjustments in tight spaces, making it ideal for laboratory and mechanical applications. Supplied with a brass mounting body, installation is straightforward—simply drill a 3/16" hole. The precision threads ensure smooth adjustment, while maximum thread engagement provides high load capacity. Stock travel lengths are available in .125" and .250", with custom versions available upon request.
Product Features
Performance Specifications
Additional Information
Characteristics / Technical Specifications
Product Features
- 100 Threads/inch
- HEX drive
- Vacuum compatible versions available upon request
Performance Specifications
- Travel per revolution: 254 µm/rev
- Minimum controllable motion: submicron (based on 1° of adjustment screw rotation)
- Maximum load: 30 lbs
Additional Information
- Brass mounting body for ease of installation
- Stock travel lengths: .125" (3mm) and .250" (6mm)
- Custom versions available upon request
Characteristics / Technical Specifications
- SKU: 4-100 ADJ SCREW
- Travel options: 3mm/.125in, 6mm/.25in
- Volume: 0.000000
- Weight unit of measure: LB
