Manual positioning stage MXIN-LDMI

2-axisfor microscopes

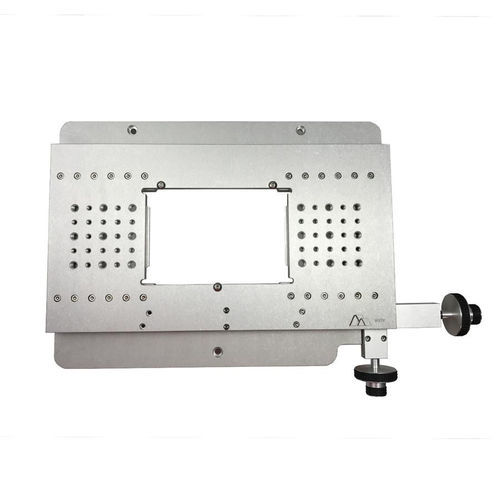

The MXIN-LDMI Series Stage is a manual microscope stage designed for use with Leica DMI series inverted research microscopes. It features Siskiyou's unique coarse-fine drive system, enabling rapid travel in both the x-axis and y-axis, as well as 3mm of high-resolution fine control in both axes. This stage is engineered to accommodate demanding research applications requiring precise and repeatable positioning.

Performance Specifications

• Travel range:
  • X axis, coarse/fast: 104 mm
  • X axis, fine: 3.5 mm
  • Y axis, coarse/fast: 76 mm
  • Y axis, fine: 3.5 mm
• Resolution:
  • Coarse/fast: 100 µm
  • Fine: 5 µm

*Minimum controllable motion: BASED ON 1° OF ADJUSTMENT SCREW ROTATION*

Key Features

• Manual microscope stage for Leica DMI series
• 104mm X axis travel (coarse/fast)
• 76mm Y axis travel (coarse/fast)
• 3.5mm fine travel in both X and Y axes
• High-resolution fine control (5 µm)
• Rapid and precise positioning

Technical Specifications

• Product type: Manual microscope stage
• Compatible microscope: Leica DMI series inverted research microscope
• Drive system: Coarse-fine drive
• Travel range (X): 104 mm (coarse/fast), 3.5 mm (fine)
• Travel range (Y): 76 mm (coarse/fast), 3.5 mm (fine)
• Resolution: 100 µm (coarse/fast), 5 µm (fine)
• Minimum controllable motion: Based on 1° of adjustment screw rotation
