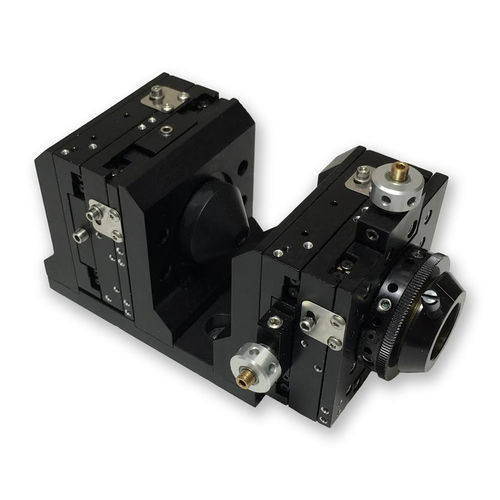

Fiber optic coupler SM-CFTx

compactsingle-mode

The SM-CFTx is a compact single mode fiber coupler designed for compatibility with CFC connectorized fiber chucks. It utilizes vibration-resistant OTX.5 series multi-axis optic positioners, capable of withstanding a 3G jolt without movement, ensuring stability in demanding environments. The device features 100 TPI hex adjustment screws for precise sub-micron translation, and a unique Y-axis knob with a capture screw design to prevent drift from overloading. Non-influencing axis locks are included for added stability after alignment. The SM-CFTx is equipped with an aspheric coupling lens for diffraction-limited performance, non-rotating focus adjustment, and crossed roller construction for enhanced durability.

Product Features

• 100 pitch adjustment screws
• Compatible with CFC series chucks
• Aspheric coupling lens for diffraction-limited performance
• Axis locks
• Non-rotating focus adjustment
• Crossed roller construction

Performance Specifications

• Travel:
  • X and Y axes: 0.125 inch (3 mm)
  • Z axis: 0.250 inch (6 mm)
• Minimum controllable motion:
  • X, Y, and Z axes: submicron (based on 1° of adjustment screw rotation)

Technical Specifications

• Product type: Single mode fiber coupler
• Compatible with: CFC connectorized fiber chucks
• Adjustment screws: 100 TPI hex
• Axis locks: Yes
• Focus adjustment: Non-rotating
• Construction: Crossed roller
• Travel range: X/Y: 0.125 inch (3 mm), Z: 0.250 inch (6 mm)
• Minimum controllable motion: Submicron
• Vibration resistance: Withstands 3G jolt
