XY positioning stage BFT

XYZmotorized3-axis

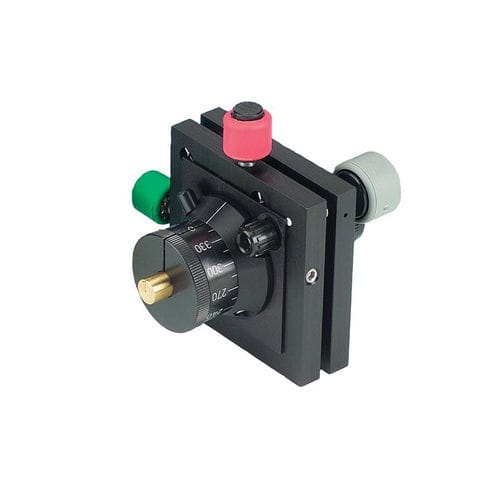

The BFT Series Positioner is a bare fiber translator designed for precise positioning in fiber optic applications. It is compatible with BFC series fiber chucks, supporting both polarizing and non-polarizing uses. The positioner features 80TPI adjustment screws for fine control along the X, Y, and Z axes, and incorporates SoftTouch color-coded knob caps on the X and Y axes for easy identification in low light environments.

Product Features

• 80 pitch adjustment screws
• Rod mounting
• Lockable XY axis

Performance Specifications

• Travel per axis: 0.12 inch (3.1 mm)
• Minimum controllable motion: 1 µm (based on 1° of adjustment screw rotation)

Options

• Unit of Measure (UOM): METRIC or IMPERIAL
• Axes of Adjustment: X-Y-Z, X-Y-Z Tip/Tilt, X-Y-Z Tip/Tilt Polarizing, X-Y-Z Polarizing

Characteristics / Technical Specifications

• Compatible with BFC fiber chucks
• 80TPI adjustment screws for X, Y, Z axes
• SoftTouch color-coded knob caps for X and Y axes
• Rod mounting capability
• Lockable XY axis
• Travel per axis: 0.12 inch (3.1 mm)
• Minimum controllable motion: 1 µm
• Multiple adjustment options: X-Y-Z, X-Y-Z Tip/Tilt, X-Y-Z Tip/Tilt Polarizing, X-Y-Z Polarizing
