Z-axis positioning stage CFTX

motorized3-axisprecision

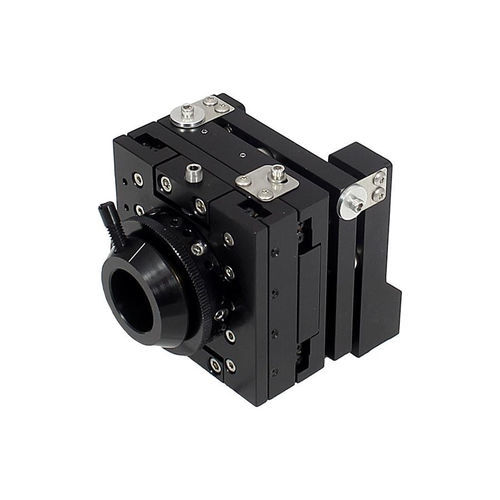

The robust design of the CFTx series fiber translators makes them ideal for critical applications in tough environments and for maintaining alignment during shipping. Based on the rock-solid OTX lens positioners, these fiber translators can withstand a 4G jolt without moving more than 5 microns when the axes are locked. 100 TPI precision screws are used for precise positioning, with hex adjusters to prevent accidental misalignment. The Z-axis adjustment features an 80-pitch internal thread for precise focusing.

Product Features

• 100 pitch adjustment screws
• Compatible with CFC series fiber chucks

Performance Specifications

• X and Y travel: 0.125 inch (3 mm)
• Z travel: 0.18 inch (4.5 mm)
• Pitch and Yaw: 5°

Characteristics / Technical Specifications

• Robust design for critical and tough environments
• Maintains alignment during shipping
• Based on OTX lens positioners
• Withstands 4G jolt with less than 5 microns movement (axes locked)
• 100 TPI precision screws for positioning
• Hex adjusters to prevent accidental misalignment
• 80-pitch internal thread for Z-axis focusing
• Compatible with CFC fiber chucks
