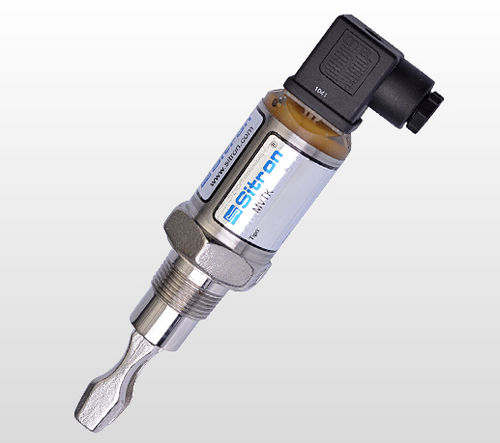

Vibrating level switch MVTK-AC

for liquidssanitarystainless steel

The MVTK with no housing comes in two versions: The MVTKAC powered by 85 to 264Vac or the MVTKDC, powered by 24Vdc. Both units come with a standard DIN electrical connection. Either unit is an ideal solution for point level detection of liquids, regardless of the conductivity or dielectric of the product. All models are made in 316 Stainless Steel, can be ordered with a great variety of threaded, flange, or hygienic fittings, are available with Halar or epoxy coatings and can operate at temperatures up to 100ºC. Application: Level Switch for Liquids Operating Voltage: 20...60 Vdc / AC - 85...264 Vac Consumption: 3mA Output: DC - PNP (3 wires) / AC - Direct Load Switching (2 wires) Viscosity: 0.5...5000 cSt Accuracy: 0.1% Repeatibility: < 0.5mm Time Delay: 1 Seg. Set point: 13mm from tip Load Corrent (Max): DC - 500mA / AC - 100mA Enclosure Material: 316 S.S Electrical Connections: Plug DIN 43650 / M12 connector Process Connection: 3/4” to 1 ½” BSP, NPT or sanitary Wetted Material: 316 S.S Class Protection: IP65 (IEC 60529) DIN Connector 43650 / IP67 (IEC 60529) M12 Connector High level alarm Low level alarm Pump protection Leak detection Overflow alarm Supply line control Fill/Drain control Lubricant monitoring Cooling water monitoring On/Off valve monitoring Oil level detection
