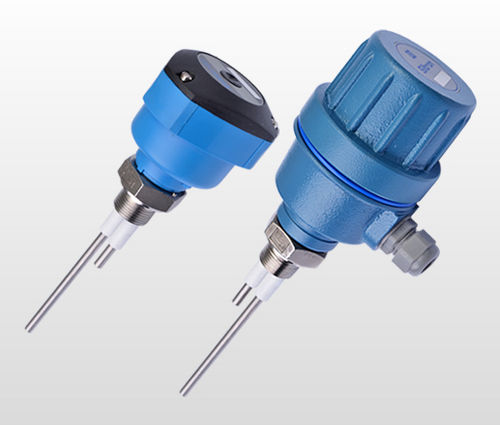

Conductive level switch CN2
for liquidsaluminumstainless steel

conductive level switch
conductive level switch
Add to favorites
Compare this product


Characteristics

Technology
conductive
Medium
for liquids
Material
aluminum, stainless steel
Mounting
threaded, flange
Other characteristics
multi-point, IP65
Process temperature

Min.: -10 °C
(14 °F)

Max.: 80 °C
(176 °F)

Process pressure

Min.: 0 bar
(0 psi)

Max.: 20 bar
(290.08 psi)

Description

The CN series with nylon housings offer up to two active rods and one reference rod to control the level of all conductive mediums. The built-in electronics of the CN Series also offers adjustable sensitivity and time delay adjustment. Because the electronics/relay is mounted within the housing, the use of a remote controller is not necessary. Models are available with rigid rods, removable rods or pendular electrodes. For applications with heavy vapor, aggressive media or a product that tends to stick to or accumulate on the rods, Sitron recommends that the rods should be Halar coated. Application: Level Detection in Liquids Power Supply: 24Vdc (+/- 10%) Consumption: 2VA Output: Relay (SPDT) 5A-250Vac Ajustment: Sensibility: max 50K ohms Time Delay: 0.1 to 5 sec. Enclosure Material: Nylon Electrical Connection: Cable Gland ½” BSP, NPT or M12 connector Process Connection: 1/2” to 1 ½” BSP or NPT, Flange and Sanitary Wetted Parts: 316 SS High level alarm Low level alarm Pump protection Leak detection Overflow alarm Supply line control Fill/Drain control Cooling water monitoring On/Off valve monitoring

Catalogs

CN1 & CN2
CN1 & CN2
2 Pages
