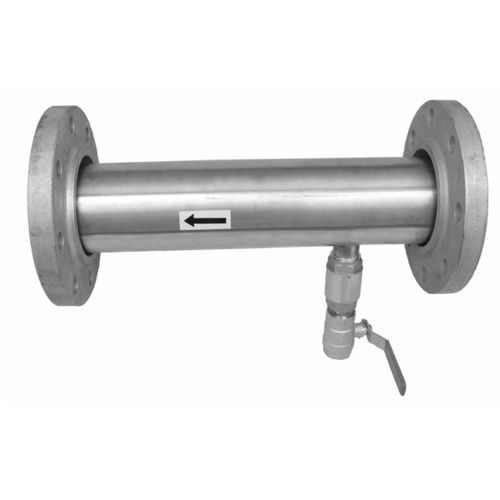

Stainless steel inductor MI-80

The stationary inline inductor injects foam agent into a water stream. The inductor can handle high counter pressures, allowing a long distance from the injection point to the foam applicator. Application An inline inductor is designed for use in fixed flow foam systems such as low, medium, and high-expansion foam systems, water and foam deluge systems, and monitors. Product Features Light weight corrosion resistant all stainless steel construc tion with hot-dipped galvanized slip-on flanges  Factory calibrated to any flow and pressure in the range Specifically designed for low percentage admixture Low main stream pressure loss Foam induction up to 6% Integrated suction check valve MI series ranges from 800 Lpm at 5 bar (211 gpm at 73 psi) to 12,000 Lpm at 16 bar (3,170 gpm at 232 psi) inlet pressure Replaceable internal parts for future system changes Suction height up to 3.5 m (11.5 ft) Installation in any vertical or horizontal position Connections  Water/Foam inlet: flanged to fit DIN PN16 or ANSI 150 lb  Factory calibrated to any flow and pressure in the range Connections Foam inlet ball valve: screw threaded BSP Female Foam concentrate suction hose
