Foam machine MTB-ASME

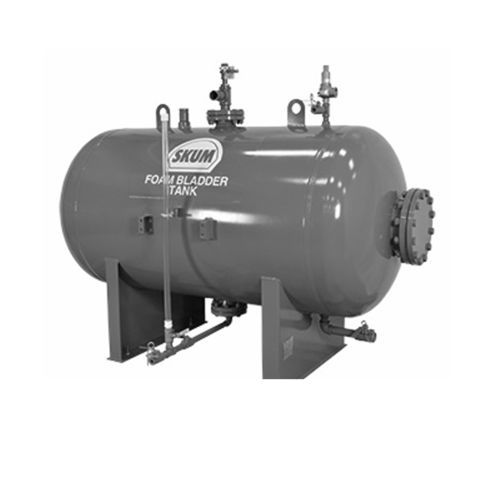

The SKUM MTB-ASME Horizontal Foam Bladder Tank is a steel pressure vessel that stores foam concentrate in an elas tomeric bladder. As incoming water applies pressure to the bladder, the foam concentrate discharges from the tank. This energy transfers to the concentrate and supplies pressurized concentrate to a proportioner. For details on the bladder tank proportioners Features UL Listed and FM Approved for use with various proportioners and foam concentrates 175 psi (12.1 bar) maximum allowable working or design pressure Nominal capacities of up to 3,000 gal (11,356 L) with larger tanks available on special request Tanks that are up to 800 gal (3,028 L) in size meet the design requirements for Seismic Zone 4 earthquake resistance Brass or 316 stainless steel (SS) trim piping and valves Grooved, NPT, and flanged connection options Standard or corrosion-resistant epoxy exterior paint is available in various colors Optional sight gauge and thermal pressure relief valves Application The SKUM MTB-ASME Horizontal Foam Bladder Tank is one component of a balanced pressure proportioning system. For operation, SKUM bladder tanks only require a pressurized water supply. They do not require other sources of external power. To create a complete foam system, use the SKUM MTB-ASME Horizontal Foam Bladder Tank with one or more SKUM proportioners and any suitable discharge device. You can use most SKUM foam concentrates with SKUM bladder tanks.
