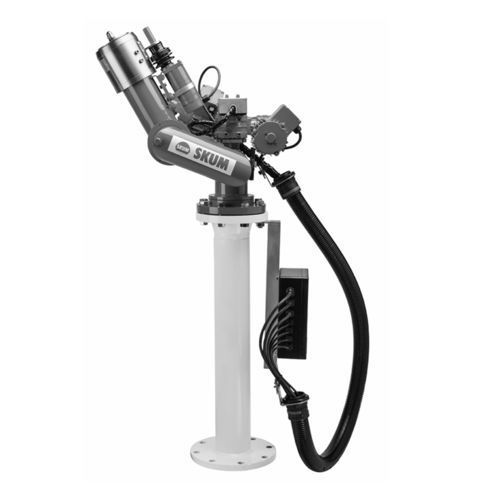

Foam-based fire extinguishing system FJM-EL

The SKUM FJM-EL Electric Monitor is a powerful fire suppression monitor with exceptional flow characteristics and remote control operation. The electric motors in the monitor drive the elevation and rotation movements. SKUM supply two FJM-EL Electric Monitor models; the MV (magnet valve) model and the LA (linear actuator) model. The MV model contains a solenoid valve to adjust and operate the fog and jet patterns. The LA model contains a linear actuator to adjust and operate the fog and jet patterns. Application The SKUM FJM-EL Electric Monitor is designed for fixed mounting to deliver water and foam. The monitor can deliver varying water to fog patterns and is adjustable through remote control operation. Features Wide capacity range Adjustable flow to nominal capacity Compact and balanced design Low friction bearings for easy manoeuvres Long throw length Adjustable stream pattern Stainless steel and bronze corrosion-resistant construction Integrated electrical junction box Available with ATEX approved electrical equipment Connections The foam and water inlet is flanged according to DIN PN16, JIS 10 K, or ANSI 150 lb Optional components The following components are available on request: Standard control cabinet and operating panel Custom-built solutions and control cabinet Power supply from 24 VDC to 440 VAC Harsh environment cast iron motors and gearboxes The S-version inbuilt inductor is available for most models The suction hose and valve is available for the S-versions
