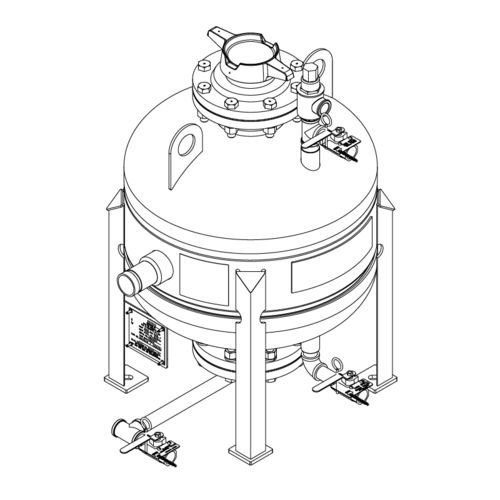

Steel pressure vessel 25

brassbladderstorage

UL Listed and FM Approved for use with various proportioners and foam concentrates Large, removable cap for easy filling Choice of Standard or Corrosion-Resistant Epoxy exterior paint, available in a variety of colors Standard high-build epoxy internal coating suitable for use with fresh or seawater Application The SKUM 25 & 36 Gallon Bladder Tanks are one component of a balanced pressure proportioning system. These small systems could include backup generator fuel storage in high rise buildings and hospitals or other small flammable liquid storage areas. SKUM 25 & 36 Gallons Bladder Tanks require only a pressur ized water supply for operation. No other external power is required Description SKUM 25 & 36 Gallon Bladder Tanks are a steel pressure vessel which stores foam concentrate contained within an elastomeric bladder. The concentrate is discharged from the tank by incoming water applying pressure to the bladder. This applied energy is transferred to the foam concentrate, supply ing pressurized foam concentrate to the proportioner. Trim Piping and Connections SKUM 25 & 36 Gallon Bladder Tanks are vertically oriented and intended for bottom discharge of foam concentrate. Trim piping is brass with bronze manual ball valves. Standard tanks include the tank shell drain, tank shell vent, and bladder drain/ fill valves. The foam concentrate connection is 1 in. (25 mm) female NPT. The tank water inlet connection on all configurations is 2 in. (50 mm) and is supplied as standard with fittings for use with either grooved or NPT threaded water piping.
