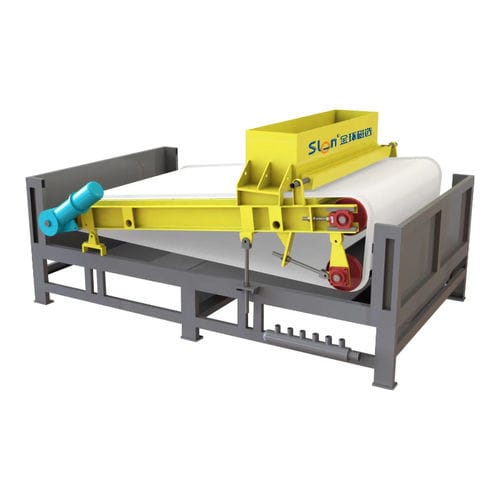

Particle separator SPBC series

magnetic beltfor oreself-cleaning

High intensity: The magnetic system is made of high-performance rare earth Neodymium iron boron material and is not easy to demagnetization; Large effective separation area: the maximum width and length of the magnetic separation surface can reach 2.5m and 3.0m respectively; Smooth surface of magnetic plate: The magnetic block and the magnetic plate are fixed in a unique way, which is firmly fixed and the whole surface of the magnetic plate is smooth; Uniform distribution: Two-stage buffering is adopted to distribute the material evenly, and the mesh is distributed evenly, so as to realize the uniform contact of the material in the direction of separation width; Clean iron unloading: multi-stage and multi-angle strong washing system is adopted to realize the complete separation of magnetic products and separation belts; Water and energy saving: intensive water supply pipeline is adopted to save water;A single device is driven by only one motor, which consumes less power. How does it work? The slurry enters the feeding box and flows out evenly on the belt with a thin layer through the bottom holes. The magnetic particles in the slurry are captured by the magnetic force of the magnetic system under the belt and adsorbed on the upper surface of the belt.Then the magnetic particles are intercepted by the raised rubber strip on the belt and moves upward with the belt.When it arrived the rinsing zone, the non-magnetic particles will be rinsed out from the magnetic particles .
