Metal separator SCT series

permanent magnetprocessfor ore

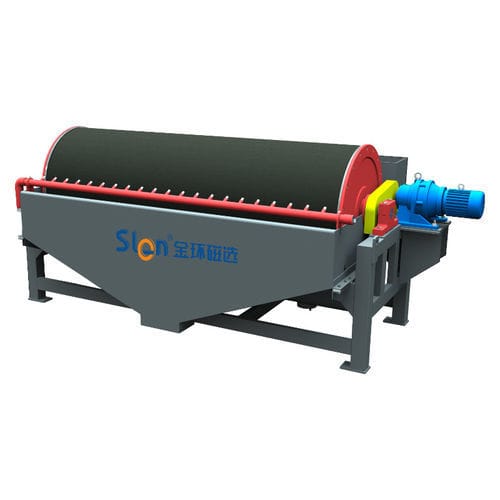

Wet drum magnetic separator aka low intensity magnetic separator(LIMS) is widely used in mines and coal separating factories to separate the wet fine magnetic substances or remove the magnetic substances from the non-magnetic materials.

SLon LIMS is suitable for processing magnetite,pyrrhotite, magnetite, titanium magnetite, calcined ore and other materials, as well as the iron removal and purification of feldspar, quartz sand, kaolin and other non-metallic minerals.

Reliable magnetic material, made of high magnetic remanence and high coercivity magnetic materials, which has very good anti-demagnetization ability, and the demagnetization does not exceed 5% in eight years;
Slon applied a unique and reliable fixing scheme to ensure the magnetic group will never fall off and be damaged;
Duckbill shape flushing hose, has strong adaptability to water quality and large water pressure, can effectively saving water of 50%;
Optional protection material, such as:wear-resistant rubber, stainless steel and wear-resistant ceramics.

How does it work?
SLon offers the following 3 different types tank LIMS:
CTB series semi-countercurrent LIMS;
CTB series is designed for handling minerals with particle sizes from 0.6-6mm, It is the first option before WHIMS to separate the magnetite mineral from those weak magnetic mineral.
CTS series co-current LIMS;
CTS series is designed for handling minerals with particle sizes from 0-6mm,it is specially used for pre-selection of coarse material,such as river sand, sea sand etc. And it is also suitable for recovering of magnetic heavy media.
