Metal separator CH-SWCXJ series

magneticprocessfor ore

Product description

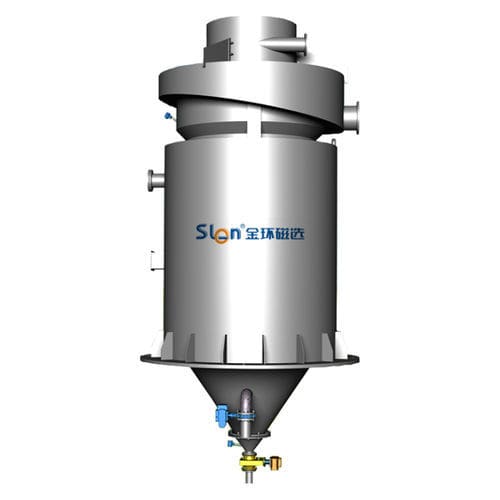

The auto magnetic elutriation column CH-SWCXJ series is designed for magnetite separation. It can perform desliming, concentration and grade upgrading simultaneously or in stages according to ore characteristics and process requirements. The equipment is suitable for integration with high-frequency screens or cyclones in mineral processing flowsheets.

Product features

• Desliming: enables near-complete separation of gangue and magnetic iron
• High-precision separation: dissociates mineral associations to separate poor and rich fractions
• Adjustable operation: concentrate grade and recovery can be varied to match process targets
• Scalable capacity: design overcomes limits of small handling capacity and unstable feed distribution
• Process integration: effective combination with high-frequency screens or cyclones for magnetic mineral recovery
• Process optimization: can replace multiple magnetic separation units in the concentrating section
• Water-saving design: reduced water consumption by optimized circulation
• Computer remote control: supports automated monitoring and adjustment

How it works
Circular water is fed tangentially from the bottom to form a rising spiral flow in the separation zone. Ore is introduced from the top feeder and dispersed into the zone. Multiple superimposed magnetic fields act in the separation area: gangue particles and weakly magnetic material are carried out by the spiral rising water and overflow with the water flow to the tailings. Individually dissociated magnetic iron particles experience a stronger downward magnetic force plus gravity than the upward water forces and are discharged through the concentrate outlet at the column bottom to form the concentrate.
