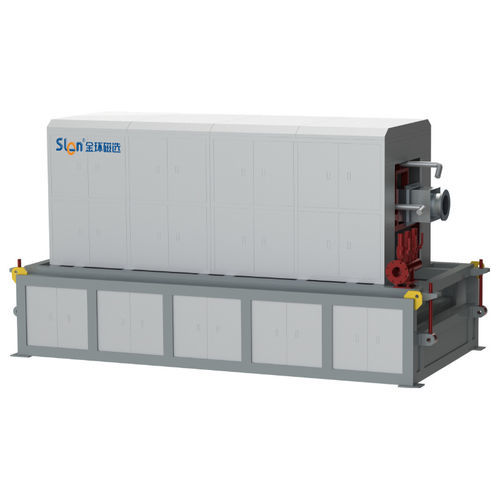

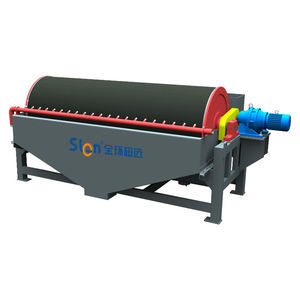

Ferrous metal separator WCT series

permanent magnetprocessfor ore

Product overview:
Internal permanent magnetic separator WCT designed for pre-concentration and iron removal in mineral processing. Suitable for separating magnetic minerals from mixed ores and for removing iron contaminants from non-metallic minerals.

Applications:

• Pre-selection of vanadium–titanium magnetite and mixed iron ores
• Concentration of beach sand, quartz sand and coarse mineral sands
• Iron removal from non-metallic minerals such as quartz, feldspar and kaolin

Key features:

• Permanent magnet system with magnetic matrix provides high field strength and deep action for efficient separation
• Adapts to a wide range of particle sizes and resists clogging
• Concentrate grade adjustable via cylinder rotation speed and washing water flow
• Low energy and water consumption for reduced operating costs
• Compact footprint, stable operation, low noise and simplified maintenance

Operating principle:
Feed enters the feeding box and is distributed into the separation cylinder. A fixed magnetic system generates a non-uniform magnetic field inside the separation zone. Magnetic particles are attracted to the inner wall or the magnetic matrix and rotate with the cylinder. When reaching the upper non-magnetic zone, magnetic particles are discharged into the concentrate trough by gravity and washing water and collected in the concentrate box. Non-magnetic material flows into the tailings discharge box, achieving continuous separation.
