Analog input module PICOSCALE Breakout

digitalbox

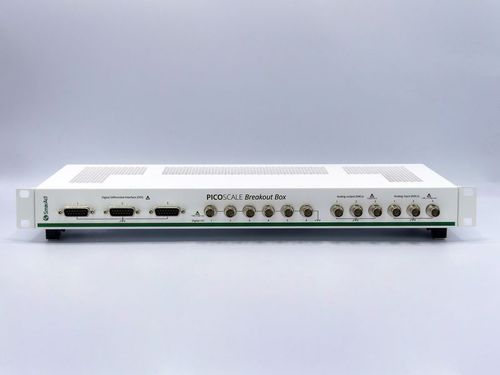

The PICOSCALE Breakout Box is a versatile accessory designed to enhance connectivity and usability for SmarAct's PICOSCALE Interferometer systems. It provides convenient access to digital and analog signals, facilitating seamless integration with external devices for high-precision displacement measurement and control applications. Specifications Digital Input/Output (6x) - 5 V or 3.3 V High level Fast analog Input (1x) - 16 bit resolution, 40 MSa/s sampling rate, 2.5 MHz bandwidth, ±10 V input voltage range Analog Input (2x) - 16 bit resolution, 400 kSa/s sampling rate, 100 kHz bandwidth, ±10 V input voltage range Fast analog output (1x) - 16 bit resolution, 20 MSa/s conversion rate, 2.5 MHz bandwidth, ±10 V output voltage range Analog output (2x) - 16 bit resolution, 400 kSa/s conversion rate, 100 kHz bandwidth, ±10 V output voltage range Digital Differential Interface (3x), for AquadB, Serial Data or BiSS-C output - 3.3 V differential output
