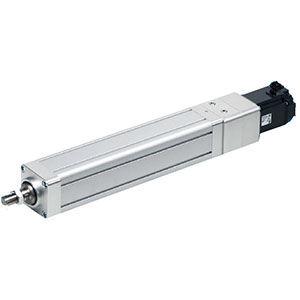

Linear actuator LEY100 seriesball screwACISO 15552
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Technology
- ball screw
- Motor
- AC
- Norms
- ISO 15552
- Other characteristics
- positioning
- Stroke
Max.: 1,000 mm
(39.37 in)Min.: 100 mm
(3.937 in)- Force
12,000 N
- Torque
2.4 Nm
(1.77 ft.lb)- Speed
Max.: 500 mm/s
Min.: 30 mm/s
- Ambient temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Repeatability
0.02 mm
(0 in)
Description
LEY100 is a rod actuator size exclusively fitted with an inline 750W AC servo motor, with or without a lock. Three ballscrew pitch options assist in optimizing force and speed. The actuator can have a male or female rod end paired with tapped ends, foot or rod flange bracket for ISO15552 mounting. Optional drivers include pulse input or five different fieldbus types including Ethernet.
• Encoder resolution (absolute): 18- or 22-bit (driver dependent)
