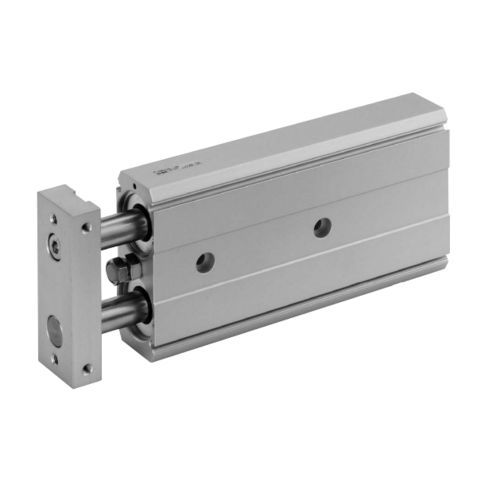

pneumatic cylinder / with guided piston rod / double-piston / compact
CXSJ

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
pneumatic cylinder / with guided piston rod / double-piston / compact pneumatic cylinder / with guided piston rod / double-piston / compact - CXSJ
{{requestButtons}}

Characteristics

  • Type:

    pneumatic

  • Technology:

    with guided piston rod, double-piston

  • Other characteristics:

    compact, precision, small

  • Stroke :

    Min.: 10 mm (0.394 in)

    Max.: 100 mm (3.937 in)

Description

The CXSJ series with lube-retainer is a compact dual piston actuator that is lighter and smaller than the conventional CXS unit. Its non-rotating accuracy is ± 0.1°. The CXSJL high precision ball bushing bearing type allows for smooth operation that ensures stable travel resistance. The CXSJM slide bearing type provides lateral stability protecting it from side load impacts. The addition of a lube-retainer allows for 4 times the durability in micro-powder environments (as compared to standard models). The two location lube-retainer construction reduces the entry of dust and foreign matter into the cylinder.

•Bore sizes: 6, 10, 15, 20, 25, 32mm
•Non-rotating accuracy: ± 0.1°
•Stroke lengths up to 100mm
•Auto switch capable
