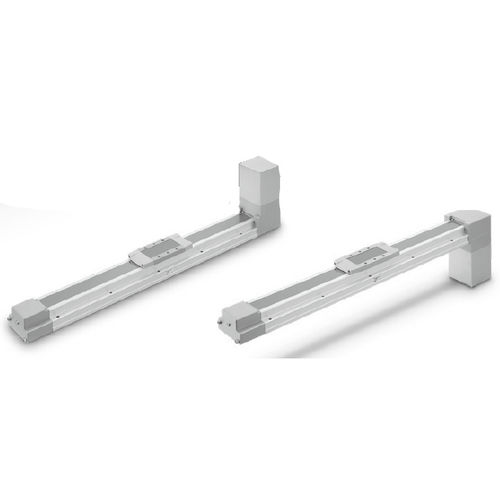

Electric actuator LEFB serieslinearbelt-drivenAC
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- belt-driven
- Motor
- AC
- Applications
- industrial
- Other characteristics
- slide
- Stroke
Max.: 3,000 mm
(118.11 in)Min.: 300 mm
(11.811 in)- Speed
Max.: 2 m/s
(6.56 ft/s)Min.: 0 m/s
(0 ft/s)- Operating Temperature
Max.: 40 °C
(104 °F)Min.: 5 °C
(41 °F)- Repeatability
0.06 mm
(0.0024 in)
Description
LEFB Series Step Motor (Servo/24 VDC), Servo Motor (24 VDC)
・Max. stroke: 2000 mm
・Positioning repeatability: ±0.08 mm
LEFB Series AC Servo Motor
・Max. acceleration/deceleration: 20000 mm/s2
・Pulse input type/With internal absolute encoder
・Positioning repeatability: ±0.06 mm
・Motorless specification is available.
Catalogs
Series LEFB
16 Pages
