air filter / stainless steel
AFF series

Add to MyDirectIndustry favorites

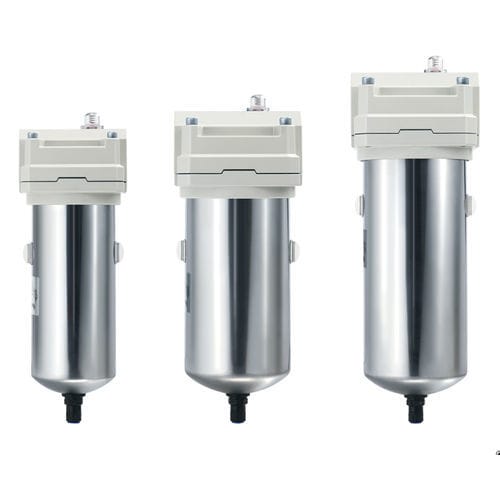

air filter / stainless steel air filter / stainless steel - AFF series
{{requestButtons}}

Characteristics

  • Designed for:

    air

  • Other characteristics:

    stainless steel

  • Filtration size:

    0.01 µm, 0.1 µm, 1 µm

  • Operating pressure:

    500,000 Pa (72.519 psi)

  • Flow rate:

    Max.: 14.5 m³/min (512.063 ft³/min)

    Min.: 7 m³/min (247.203 ft³/min)

Description

・Compressed Air Purity Class: ISO 8573
・Increase in an air flow capacity due to lower pressure drop contributing
 to energy saving
 Flow capacity: 14.5 m3/min (ANR)
  Increased by up to 20% compared with the current model
 Pressure drop: 5 kPa or less
・Lightweight: Max. 52% lighter (10.5kg→5.0kg)
 Light body weight to thinner stainless steel bowl.
・Space-saving design, Labor-saving in piping!
 The AFF series main line filter removes both water droplets and solid particles.
 A separate filter for removing water droplets (water separator, AMG
 series) is not necessary any more. Space and piping work are reduced.
・Easier replacement of the element
 Stopper function prevents the bowl from falling.
