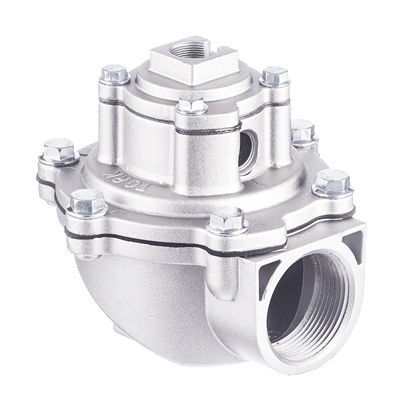

Pilot-operated solenoid valve PL1020 series2-wayNCair
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- air
- Body
- IP65, stainless steel, aluminium
- Process connection
- G 3/4, G 1, G 1 1/2, G 2, G 3, G 2 1/2
- Other characteristics
- pulse, remote control
- DN
Max.: 3 in
Min.: 0.75 in
- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 160 °C
(320 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 8 bar
(116 psi)Min.: 0.5 bar
(7.3 psi)
Description
PL1020 REMOTE CONTROL PULSE SOLENOID VALVE, NORMALLY CLOSED
Application : Compressed Air , dust collector services
Size : 3/4"..3"
Working Pressure : 0,5…8 Bar (3/4”…1 1/2”); 3…8 Bar (2”…3”)
Coil, Tube : Stainless Steel
Body : Aluminum
Seal : NBR, Viton, thermoplastic (3/4”…1 1/2”); NBR, Viton (2”…3”)
Fluid Temperature : -40°C…120 °C ( with thermoplastic diaphragm ), -10°C…80 °C ( with NBR diaphragm ), -10°C…160 °C ( with Viton diaphragm )
Position : Normally closed
Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC
