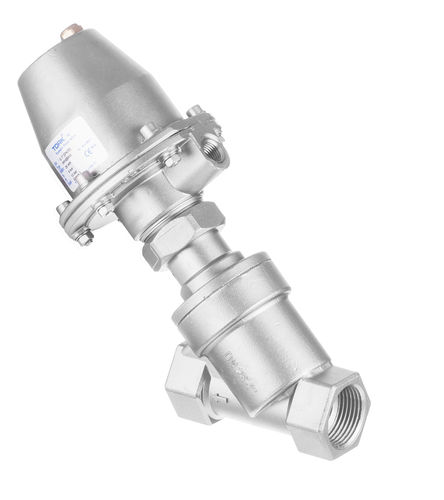

Piston valve PP1020 and PP1021 Series

pneumatically-operatedfor controlfor steam

GENERAL DETAILS Application Water, Air, Steam, Gas, natural gas, Chemicals, Petroleum products, Food, Pharmaceutical products, Sterilization, Water treatment, Dyeing, Cleaning plants, Aggressive gases and liquids, Vacuum application, Oil, Petrol, Alcohol, Hydraulic liquids, Salt solutions, Organic solvents, Acids PP1020 Series Normally Closed ; PP1021 Series Normally Open Advantage of TORK Pneumatic Piston Valves ● Less pressure drop than the globe valves ● Short open-close time ● High flow rate ● Body and actuator in AISI 316 stainless steel, precision casting ● Flanged and welding connection available on request Type - : Pneumatic Actuated Angle Seat, Piston Valve Connection - :Screwed G (BSP) , 1/2"...2" Function - : Normally Closed Working Temperature - :-10 … +180°C Max. Operating Pressure: 16 bar Recommended Control Air Supply: 4-6 bar Air Supply Connection - : 1/4" G Body - : All body AISI 316 stainless steel Sealing Material - : PTFE (optional Viton, EPDM) On Request: - NPT screwed connection Way - : - 2/2 way
