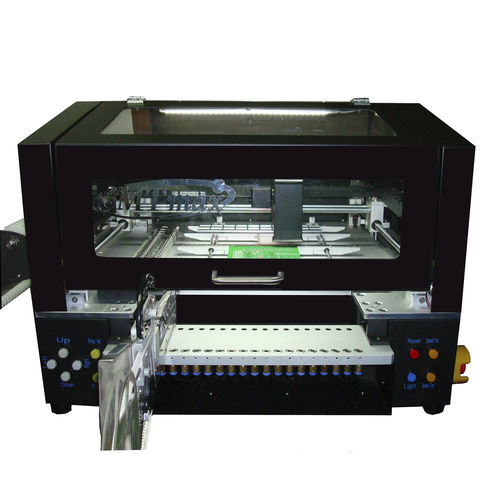

SMT pick-and-place machine QM1200
automaticvacuumbenchtop

SMT pick-and-place machine
SMT pick-and-place machine
SMT pick-and-place machine
SMT pick-and-place machine
SMT pick-and-place machine
Add to favorites
Compare this product


Characteristics

Applications
SMT
Other characteristics
automatic, vacuum, benchtop

Description

QM1200 Desktop Automatic Pick and Place Machine Model - QM1200 PCB Size - 14.5" X 16.0" Visual System - Up and Down looking cameras Visual function - Mark point positioning calibration Head Number - 2 Auto advanced feeders - 20 QM feeders - 20 IC Tray - 2, (plus Loose Part tray) Pick and Place Capability - 5000PCS/h w/o using up-looking camera Pick and Place Accuracy - ±0.25mm Applicable Components - 0402~24mm,SOP,QFN,QFP144,BGA (Tape Width: 8mm,12mm,16mm,24mm) Overall Dimension - 16"X27"X19" Weight - 139lbs( 198lbs w/package) Vacuum Pump - -92KPA (Included, Mute Pump) Vacuum Pump Quantity - 2(Included, Mute Pump) Power Supply - 110V or 220V , 60/50 Hz Power required - 100 W Features QM1200 is a complete, low-cost turnkey automatic pick and place system that can be put into production right out of the box. The system is operated by a desktop computer. The machine is especially designed for startups, subcontractors, universities and independent labs. The machine can be easily and reliably used to place most PCB parts - from small 0402 to large BGAs or fine chips with 0.5 mm pitch. It is easy to be set up. The machine is equipped with a vision alignment device and an up and a down vision camera. These make it possible to quickly and accurately detect both of the pick and place points and parts during the operation.

VIDEO
