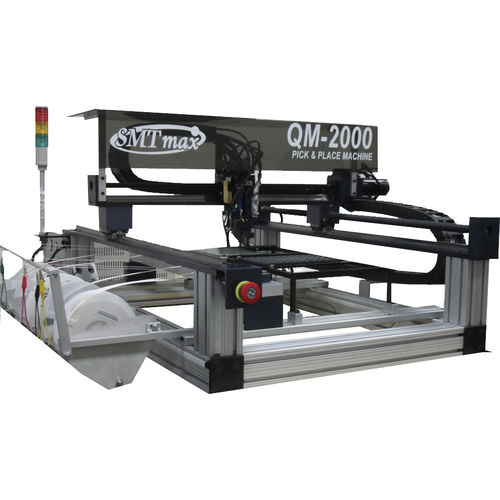

SMT pick-and-place machine QM2000

automaticwith optical alignment system

Automatic Pick and Place Machines • One Y-direction servo motor, rather than two, overcomes misalignment problem; air actuate feeders instead head-punch in advance feeders • 2000-3000 estimated pph(parts per hour) • 36" x 21" working area (QM2000) • Placement of 0402 standard (upgrade for smaller parts) • Computer vision automatic centering system for IC's (SOP, QFP, BGA) and better placement of small parts, software fly vision centering, included • Fully programmable digital Z-axis and Theta rotation angles • X and Y axis 0.0005" resolution, 0.001" positioning, 0.045° rotational resolution • 80 feeder capacity-standard for QM2000 • Uses widely available and easily obtainable feeders • Automatic PCB board position correction with fiducial recognition included • Automatic post-place vision inspection • CAD file convert function • Selective soldering function built in (optional hot air gun mounting adaptor) • 12 month full factory warranty - parts & labor • Easy to use graphic software for quick programming. Programming can be done with teaching video camera, on screen Gerber file graphics or CAD file • 110V AC 60Hz, or 220 V AC, 50Hz, 750 watts electrical • 60 psi shop air required • QM2000 180 lbs. net weight • 38"w x 40"d x 21"h • MADE IN USA • Machine customization available Options and Feeders: • Windows XP computer • Additional up looking cameras (only fixed lens can be used on the video camera for computer vision. Different cameras should be used for small and big parts for best results. Also working speed can be improved if more cameras are placed at different locations close to feeders)
