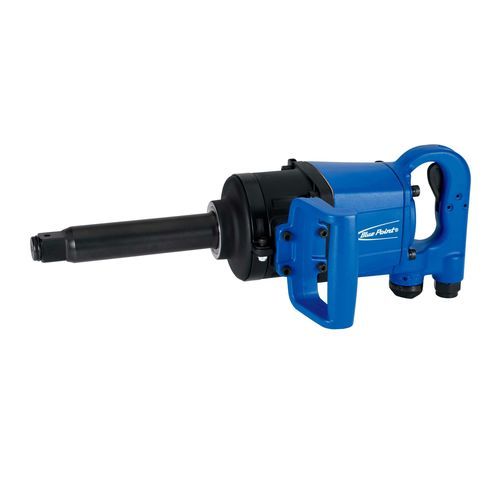

Pneumatic impact wrench Long Anvil Air Impact Wrench (Blue-Point®)

1"

Features

• Durable pin-less clutch mechanism for reliable torque transfer
• Ergonomic housing with steel protector ring
• High-performance motor to maximize output torque
• Side-mounted handle for improved operator control
• Optional internal or external trigger configuration
• Three forward and three reverse speed settings
• One-year warranty

Specifications
Free speed, RPM: 5,000
Length, in (mm): 19.53 (496)
Extended anvil length, in (mm): 6 (152)
Drive size, in (mm): 1 (25)
Anvil type: Friction ring with thru hole
Air consumption, free speed: 10.8 CFM (≈305.8 l/min)
Air inlet thread size: 1/2" NPT (14)
Recommended hose size: 1/2" (13 mm)
Weight, lb (kg): 26.9 (12.2)
Sound level dB(A): 108.9
Vibration level: 10.66 m/s²
Country of origin: TWN

Warranty
Repair or calibration at an authorized Snap-on Repair Center. 1 YEAR from date of purchase.

Technical specifications

• Free speed: 5,000 RPM
• Length: 19.53 in (496 mm)
• Extended anvil length: 6 in (152 mm)
• Drive size: 1 in (25 mm)
• Weight: 26.9 lb (12.2 kg)
• Air consumption: 10.8 CFM (≈305.8 l/min)
• Air inlet thread: 1/2" NPT (14)
• Recommended hose: 1/2" (13 mm)
• Anvil type: Friction ring with thru hole
• Sound level: 108.9 dB(A)
• Vibration level: 10.66 m/s²
• Country of origin: TWN
• Warranty: 1 YEAR (Snap-on Repair Center)
