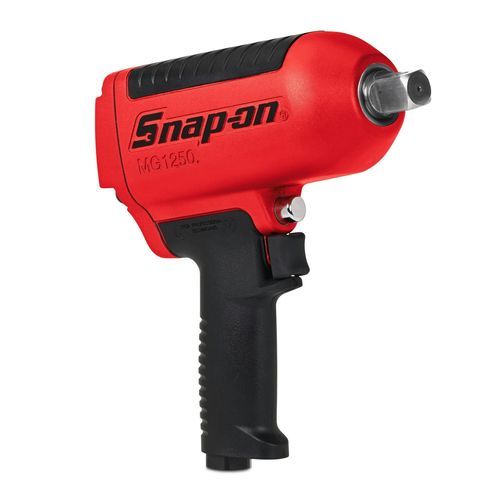

Pneumatic impact wrench MG1250P

3/4"square drivewith replaceable pins

Features

• 1,350 ft-lb (1,830 N·m) bolt breakaway torque and 1,250 ft-lb (1,695 N·m) working torque
• Designed for servicing large equipment and tires on mid-sized fleet vehicles
• Six-vane rotor for faster motor start-up
• Twin-hammer impact mechanism with sealed-in oil bath lubrication for extended service life
• One-piece magnesium housing reduces tool weight to 8.1 lb (3.6 kg) for improved control
• Anvil stops when trigger is released to prevent throwing fasteners
• Twin-hammer design with fewer moving parts to reduce downtime
• Sealed-in oil bath filled with RED LINE® Synthetic Oil for continuous lubrication
• One-handed reverse button for easy operation

Specifications
Free Speed, RPM: 6,200
Sound Pressure Level, dB(A): 99.8
Length, inches (mm): 8 (203)
Vinyl Boot: MG1200BOOT
Air Consumption, Free Speed, CFM (SCFM) [l/min]: 6.4 (46) [181]
Air Inlet Thread Size, inches (NPT): 3/8 (18)
Country of Origin: USA
Sound Level dB(A) Pressure: 99.8
Blows Per Minute, BPM: 1,050
Vibration Level, m/s²: 10.38
Recommended Hose Size, inches (mm): 3/8 (10)
Anvil Type: Thru Hole (pinned anvil)
Drive Size, inches (mm): 3/4 (19)
Weight, lb (kg): 8.1 (3.6)

Warranty
Snap-on Repair Center, 2 YEARS from Date of Purchase; repair or calibrate at Snap-on Repair Center.

Technical specifications

• Model: MG1250P
• Drive Size: 3/4 in (19 mm)
• Bolt breakaway torque: 1,350 ft-lb (1,830 N·m)
• Working torque: 1,250 ft-lb (1,695 N·m)
• Free speed: 6,200 RPM
• Blows per minute: 1,050 BPM
• Weight: 8.1 lb (3.6 kg)
• Length: 8 in (203 mm)
• Anvil type: Thru Hole (pinned anvil)
• Air inlet thread: 3/8 in NPT
• Air consumption: 6.4 CFM (46 l/min) [181]
• Recommended hose size: 3/8 in (10 mm)
• Vinyl boot part: MG1200BOOT
• Country of origin: USA
• Sound pressure level: 99.8 dB(A)
• Vibration level: 10.38 m/s²
