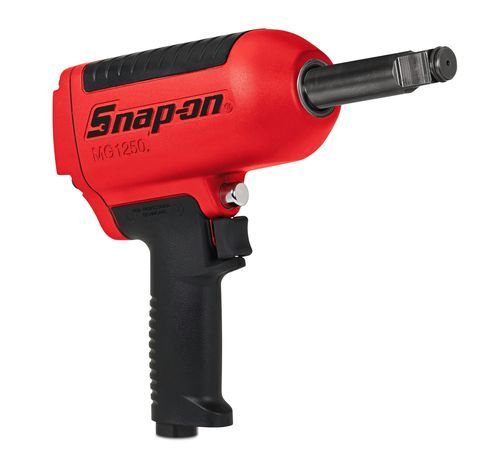

Pneumatic impact wrench MG1250L
3/4"for heavy-duty applicationslightweight

Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for heavy-duty applications / lightweight
Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for heavy-duty applications / lightweight
Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for heavy-duty applications / lightweight - image - 2
Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for heavy-duty applications / lightweight - image - 3
Pneumatic impact wrench - MG1250L - Snap-on - 3/4" / for heavy-duty applications / lightweight - image - 4
Add to favorites
Compare this product

Characteristics

Type
pneumatic
Drive size
3/4"
Other characteristics
for heavy-duty applications, lightweight, square drive, for the automotive industry
Torque

Max.: 1,830 Nm
(1,349.7387 ft.lb)

Min.: 1,695 Nm
(1,250.1678 ft.lb)

Length

Max.: 267 mm
(10.5 in)

Min.: 267 mm
(10.5 in)

Sound level

Max.: 100 dB

Min.: 100 dB

Weight

Max.: 3.99 kg
(8.796 lb)

Min.: 3.99 kg
(8.796 lb)

Description

Product overview
  • High-torque 3/4" drive air impact wrench engineered for heavy-duty applications on large equipment and fleet vehicles.
  • Lightweight one-piece magnesium housing improves control and reduces operator fatigue.
  • Extended 3" anvil provides additional reach for recessed fasteners and large wheel nuts.


Features
  • 1,350 ft-lb (1,830 N·m) bolt breakaway torque; 1,250 ft-lb (1,695 N·m) working torque.
  • Six-vane rotor for faster motor start-up and responsive performance.
  • Twin-hammer impact mechanism delivers powerful impacts with fewer moving parts for reduced downtime.
  • Sealed-in oil bath lubrication filled with RED LINE® Synthetic Oil for continuous protection and extended tool life.
  • Lightweight one-piece housing (housing weight 8.1 lb) and total tool weight 8.6 lb for superior control.
  • Anvil stop on trigger release prevents throwing fasteners; one-handed reverse button enables quick direction changes.


Technical specifications
  • Item / SKU: MG1250L
  • Brand: Snap-on
  • Drive Size: 3/4" (19 mm)
  • Bolt Breakaway Torque: 1,350 ft-lb (1,830 N·m)
  • Working Torque: 1,250 ft-lb (1,695 N·m)
  • Free Speed (RPM): 6,200
  • Blows Per Minute (BPM): 1,050
  • Length: 10.5 in (267 mm)
  • Extended Anvil Length: 3 in (76 mm)
  • Anvil Type: Friction Ring with Thru Hole
  • Air Consumption (Free Speed): 6.4 CFM (46 l/min) [181]
  • Air Inlet Thread Size: 3/8" (18 NPT)
  • Recommended Hose Size: 3/8" (10 mm)
  • Weight: 8.6 lb (3.99 kg) [housing: 8.1 lb]
  • Sound Pressure Level: 99.8 dB(A)
  • Vibration Level: 10.38 m/s²
  • Lubrication: Sealed-in oil bath filled with RED LINE® Synthetic Oil
  • Special features: Six-vane rotor; twin-hammer impact mechanism; one-handed reverse button; anvil stop on trigger release
  • Country of Origin: USA
