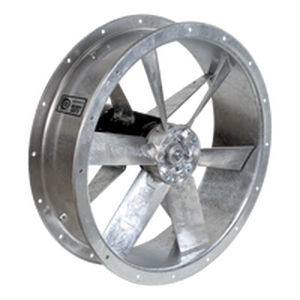

Axial fan HFW serieswall-mountedextraction230VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Type
- wall-mounted
- Function
- extraction
- Supply voltage
- 230VAC, 400VAC
- Drive mechanism
- with asynchronous motor
- Material
- cast aluminum
- Applications
- for industrial applications
- Other characteristics
- reversible, IP55, ATEX
- Air flow
Min.: 10,150 m³/h
(358,443.867 ft³/h)Max.: 76,150 m³/h
(2,689,211.871 ft³/h)- Diameter
Min.: 665 mm
(26.181 in)Max.: 1,118 mm
(44.016 in)- Rotational speed
Min.: 910 rpm
(5,718 rad.min-1)Max.: 1,465 rpm
(9,205 rad.min-1)- Noise level
Min.: 62 dB
Max.: 95 dB
Description
Tubular axial fans designed with four support arms to reduce vibrations and equipped with low consumption aerodynamic aluminum propeller.
Fan:
• Airflow direction from motor to impeller.
• AL version rotors made of cast aluminium.
• Support ring in sheet steel with double flange and cable glands for motor supply.
• Hot dip galvanised tubular sheet steel casing.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Hot dip galvanized
On request:
• Airflow direction from impeller to motor.
• Fibreglass reinforced polyamide PL version impellers.
• 100% reversible impellers.
• Special windings for different voltages.
• ATEX certified Category 2.
