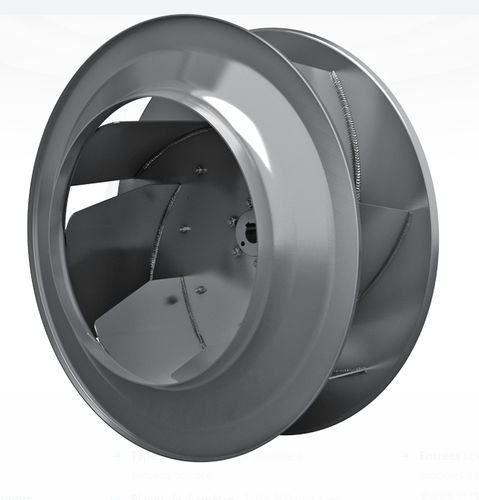

Centrifugal fan impeller CDB

carbon steelstainless steelbackward curved

CDB Series Type Centrifugal backward curved impeller welded. Diameter ranges: 315 – 800 mm with different blade heights. Materials: Manufactured using carbon steel, stainless steel . Coupling: Coupling/assembly is carried out by the mechanised fixed hub. Final finish: Powder coated, electro polish, zinc plating… Inlets: The inlet compatible with impeller models CDB is BA-A, both widened and standard, including an optional device for measuring the volume flow and in ATEX execution. Motors: AC/EC de 50/60Hz Applications: recommended both for scroll casing or plug fan applications Properties Static efficiency: - up to 76% Operational temperature: - -20 ⁰C to 120 ⁰C Maximum tangential speed: - 70,5 m/s Maximum r.p.m. speed: - 4.275 min¯¹ Maximum volume: - 42.000 m³/h Static pressure: - higher than 2.500 Pa Applications HVAC INDUSTRIAL SECTOR High temperature Agricultural sector food industry applicable to other sectors
