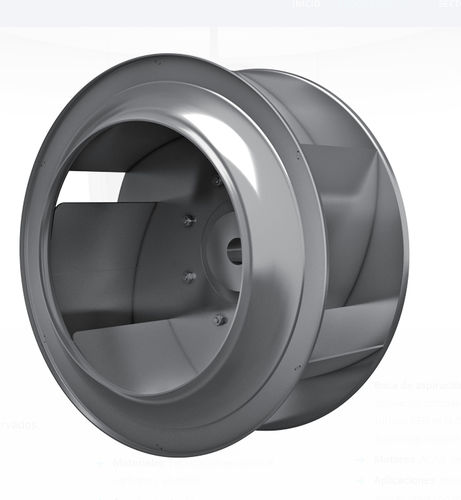

Centrifugal fan impeller CFD

aluminumbackward curvedcarbon steel

CFD Series Type:Centrifugal backward curved impeller welded. Diameter ranges: 280– 00 mm with different blade heights.8 Materials: Manufactured using carbon steel and aluminium. Coupling: Coupling/assembly is carried out by taper-lock bushing cone block system. Final finish: Powder coated, electro polish, zinc plating… Inlets: The inlet compatible with impeller models CFD is BA-B in anyone of its configurations. Motors:AC/EC de 50/60Hz Applications: recommended both for scroll casing or plug fan applications Properties Static efficiency: - hasta un 70% Operational temperature: - -20 ⁰C a 120 ⁰C Maximum tangential speed: - 77,5 m/s Maximum r.p.m. speed: - 4.700 min¯¹ Maximum volume: - 49.500 m³/h Static pressure: - superior a 2.800 Pa Applications HVAC INDUSTRIAL SECTOR High temperature Agricultural sector food industry applicable to other sectors
