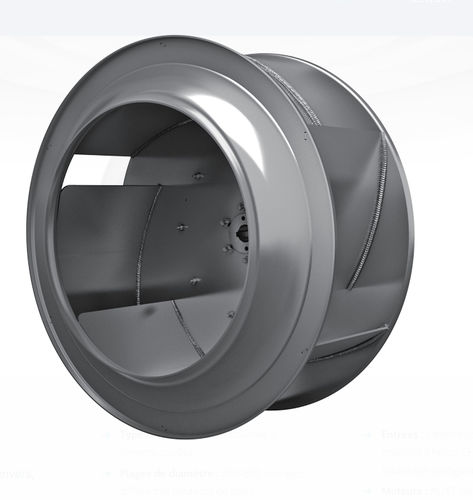

Centrifugal fan impeller CFB

carbon steelbackward curved

CFB Series Type: Centrifugal backward curved impeller welded. Diameter ranges: 280– 800 mm with different blade heights. Materials: Manufactured using carbon steel . Coupling: Coupling/assembly is carried out by the mechanised fixed hub. Final finish: Powder coated, electro polish, zinc plating… Inlets: The inlet compatible with impeller models CFB is BA-A in anyone of its configurations. Motors: AC/EC de 50/60Hz Applications: recommended both for scroll casing or plug fan applications Properties Static efficiency: - up to 70% Operational temperature: - -20 ⁰C to 120 ⁰C Maximum tangential speed: - 77,5 m/s Maximum r.p.m. speed: - 4.700 min¯¹ Maximum volume: - 49.500 m³/h Static pressure: - higher than 2.800 Pa Applications HVAC INDUSTRIAL SECTOR High temperature Agricultural sector food industry applicable to other sectors
