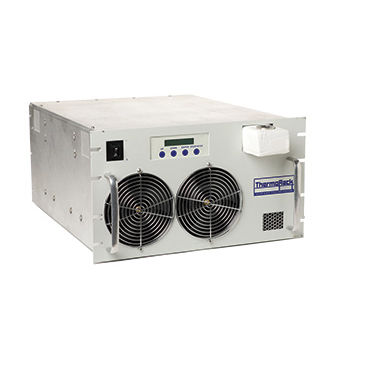

Water chiller ThermoRack 1000
glycol waterindustrialfor laser applications

water chiller
water chiller
Add to favorites
Compare this product


Characteristics

Material
water, glycol water
Applications
industrial, for laser applications, for aerospace applications
Other characteristics
custom, rack-mount, thermoelectric
Power

1,000 W (3,412.14 BTU/h)

Maximum temperature

Max.: 65 °C (149 °F)

Min.: 0 °C (32 °F)

Flow rate

12 l/min (3.17 us gal/min)

Pressure

30 psi

Description

Higher capacity, precision temperature control for PAO and perfluorinated ethers, such as Fluorinert and other process fluids ThermoRack 1000 has been specifically customized to provide leak-free, ±0.1°C temperature control of avionics, military, analytical and laser systems using non-aqueous fluids, such as PAO (Poly-Alpha-Olefin) or Fluorinert / Galden / HFE. The system can also be configured for use with water/glycol. Offering a cooling capacity of ~1,000 Watts @ 20°C with 20°C ambient temperature, ThermoRack 1000 which utilizes long-life thermoelectric technology is highly reliable and energy efficient, drawing power only when needed. These units are rack-mounted and do not require any facility chilled water. ThermoRack 1000 is also environmentally friendly, since it does not use any Freon or other refrigerants. This units is particularly popular with organizations doing ground-based testing of avionics systems which use PAO. Built with a stainless steel tank, stainless steel plumbing and Swagelok fittings TR1000 is "leak free". The standard pump is capable of delivering over 12 liters per minute of flow, supporting pressures over 50 psig. Key features: Cooling capacity of ~1000 Watts
@ 20°C with 20°C ambient temperature ±0.1°C temperature stability / repeatability Operating range: 0°C to 65°C Optimized for PAO, Fluorinert or other
non-aqueous fluids Rack mount: 19" x 27" x 10.5" (6U) RS232 communications standard Auto restart standard 3/8" Swagelok inlet/outlet fittings standard Universal power input 2 year warranty
