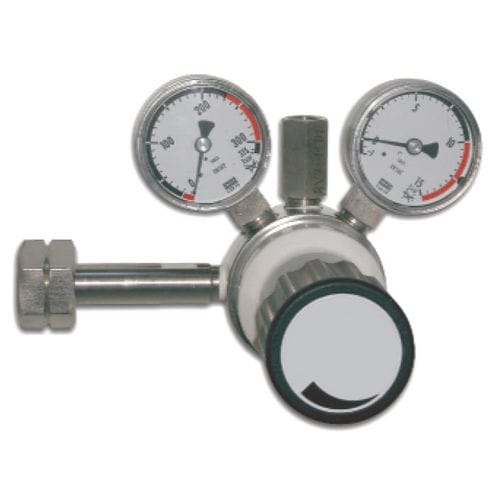

Dual-stage cylinder pressure regulator
Simple and safe gas withdrawal from gas cylinders, for corrosive gases and gas mixtures up to quality 6.0
New laboratory-style design
Ergonomically designed
Filter at the regulator inlet
Suitable for ECD-applications
High control accuracy
Integrated relief valve
Tested for use with oxygen
Compact design
Simple outlet pressure limitation by handwheel
Powder-coated bonnet
Inlet pressure P1 max. 200 bar
Outlet pressure P2 max. 1,5 / 4 / 10 bar
Materials
Body:
Diaphragm:
Valve seat:
stainless steel 316L
Hastelloy C276
PCTFE
Cylinder connection acc. to international standards and gas type
Outlet connection 1/4”-18 NPT female
Relief valve connection
1/8”-27 NPT female
Leak rate
1 x 10-8 mbar l/s He
Weight 1,9 kg
