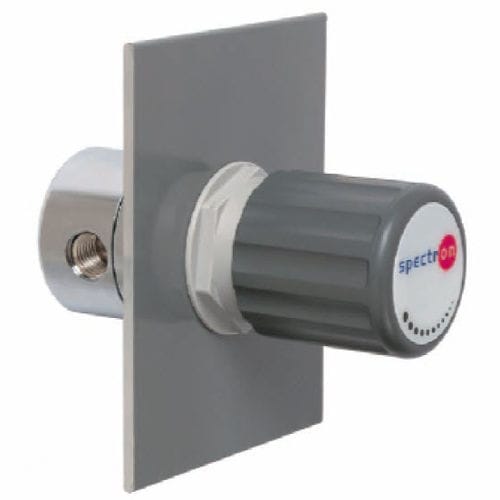

Gas pressure regulator PE 51

diaphragmsingle-stagestainless steel

Stainless steel panel pressure regulator for panel and panel surface mounting 2, 4 or 6 ports for flexible and individual configuration For corrosive, toxic gases and gas mixtures with corrosive components up to quality 6.0 Very stable outlet pressure Suitable for inlet pressures up to 300 bar Max. outlet pressures 1,5 up to 200 bar Metal-to-metal seal to atmosphere Light weight Compact design Suitable for ECD-applications Inlet filter Tested for use with oxygen Simple outlet pressure limitation by handwheel Easy to install New laboratory-style design Ergonomically designed Type single-stage Inlet pressure P1 max. 300 bar Outlet pressure P2 1,5/4 bar (P1 ≤ 50 bar) 10/20/50/100/ 200 bar (P1 > 50 bar)
