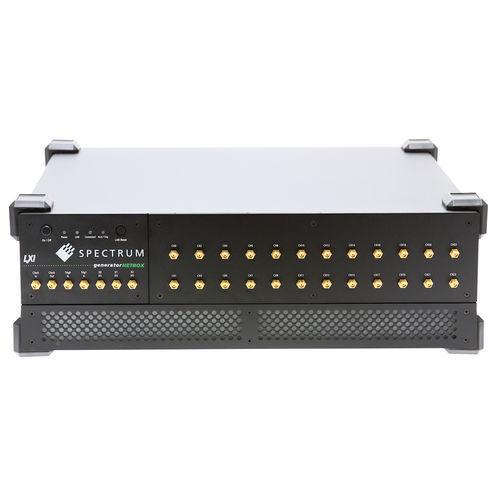

Arbitrary waveform generator DN6.66x series

functionsignal16-bit

ARBITRARY WAVEFORM GENERATOR - LXI/Ethernet - up to 1.25 GS/s - 16-bit - 16 bit arbitrary waveform generator with LXI (Gbit Ethernet) interface - Up to 1.25 GS/s - Models with 24 or 20 or 16 or 12 or 10 or 8 or 6 channels - Ouput signal bandwidth >200 MHz - Output level programmable ± 80 mV up to ± 2.5 V into 50 Ohm - Remote Control for all functions - Modes: Single-Shot, Loop, FIFO, Sequence Replay Mode, Gated, etc. - 8 different models available The generatorNETBOX DN6.66x series allows generation of arbitrary signals on up to 24 channels with update (sampling) rates of 625 MS/s or 12 channels with up to of 1.25 GS/s. These Ethernet Remote instruments offer outstanding D/A features both in resolution and signal quality. The combination of high sampling rate and resolution makes these AWGs the top-of-the-range for applications that require high quality signal generation. The remote instrument can be connected to the LAN environment or directly to a Laptop or Workstation. All functions of the instrument can be controlled remotely.
