Signal generator DN6.63 series

pulsearbitrary waveformdigital

Overview

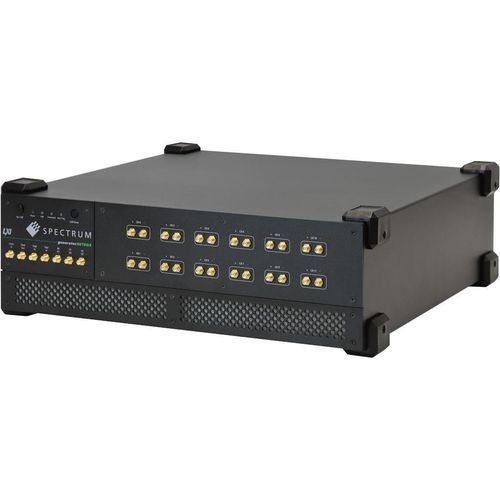

The DN6.63x series comprises multichannel 16-bit arbitrary waveform generators (AWG) with Ethernet remote control. Models support simultaneous independent output on each channel with separate DAC and amplifier per channel. Selected configurations offer sampling rates up to 10.0 GS/s and analog bandwidths up to 2.50 GHz.

Key features

• 16-bit resolution arbitrary waveform generation
• Available configurations: 4, 6, 8, 10 or 12 analog output channels
• Simultaneous signal generation on all channels with individual DAC and amplifier
• Programmable output amplitude: up to ±500 mV single-ended into 50 Ω or ±1.0 V differential into 50 Ω
• Operating modes: Single-Shot, Loop, FIFO, Multiple Replay and more
• Optional multi-carrier DDS and digital pulse generator modes
• On-board memory scalable per model (up to 8 GSamples per AWG or larger optional packs)

Available models and comparative specifications

• DN6.635-04 — 4 analog out, 4 digital out; 16 bit; samplerate: up to 10 GS/s (depends on active channels); bandwidth: 2.50 GHz; memory: 2x2 GSamples (option 2x8 GSamples)
• DN6.635-06 — 6 analog out, 4 digital out; 16 bit; samplerate: up to 10 GS/s (varies with channel count); bandwidth: 2.50 GHz; memory: 3x2 GSamples (option 3x8 GSamples)
• DN6.635-08 — 8 analog out, 4 digital out; 16 bit; samplerate: up to 10 GS/s (varies with channel count); bandwidth: 2.50 GHz; memory: 4x2 GSamples (option 4x8 GSamples)
• DN6.635-10 — 10 analog out, 4 digital out; 16 bit; samplerate: up to 10 GS/s (varies with channel count); bandwidth: 2.50 GHz; memory: 5x2 GSamples (option 5x8 GSamples)
• DN6.635-12 — 12 analog out, 4 digital out; 16 bit; samplerate: up to 10 GS/s (varies with channel count); bandwidth: 2.50 GHz; memory: 6x2 GSamples (option 6x8 GSamples)
• DN6.632 series — lower-samplerate variants (example models DN6.632-04/06/08/10/12): samplerate up to 3.20 GS/s; bandwidth: 1.40 GHz; memory and channel counts similar per model

Technical specifications

• Resolution: 16 bit
• Maximum sample rate: up to 10.0 GS/s (model- and channel-count dependent)
• Analog output channels: 4, 6, 8, 10 or 12 available
• True simultaneous generation: separate DAC and amplifier on each channel
• Output amplitude: up to ±500 mV single-ended into 50 Ω; up to ±1.0 V differential into 50 Ω
• Analog bandwidth: up to 2.50 GHz (DN6.635 family); DN6.632 family up to 1.40 GHz
• On-board memory: model-dependent, scalable up to listed maximums; optional larger memory packs
• Playback modes: Single-Shot, Loop, FIFO, Multiple Replay
• Options: Multi-carrier DDS, Digital Pulse Generator
• Interface: Ethernet (LXI/netbox remote operation)
