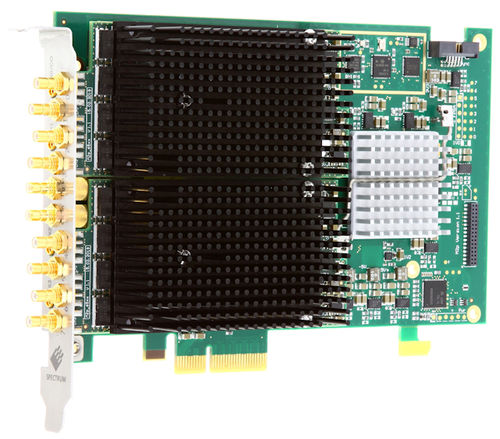

Arbitrary waveform generator M2p.65xx series

functionsignaldual-channel

ARBITRARY WAVEFORM GENERATOR - PCIe - up to 125 MS/s - 16 bit HIGH VOLTAGE OUTPUT: UP TO 24V OUTPUT SWINGS! - 16 bit arbitrary waveform generator with high voltage output - Models with 125 MS/s and 40 MS/s - Models with 4 or 2 or 1 channel - Ouput signal bandwidth > 60 MHz - Output level programmable ± 6 V into 50 Ohm or ± 12 V into 1 MOhm - 512 MSample on-board memory - Modes: Single-Shot, Loop, FIFO, Sequence Replay Mode, Gated, etc. - Synchronisation of up to 10 cards = 40 channels (with Star-Hub) - 6 different models available The M2p.65xx series offers different versions of arbitrary waveform generators for PCI Express with a maximum output rate of 125 MS/s. These boards allow to generate freely definable waveforms on several channels synchronously. With one of the synchronization options the setup of synchronous multi channel systems is possible as well as the combination of arbitrary waveform generators with digitizers of the M2p product family. The 512 MSample on-board memory can be used as arbitrary waveform storage or as a FIFO buffer continuously streaming data via the PCIe interface. The high-resolution 16-bit DACs deliver four times the resolution of AWGs using 14-bit technology.
