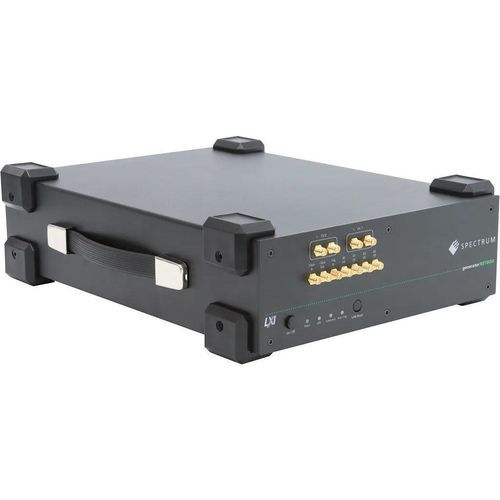

Signal generator DN2.63 series

pulsearbitrary waveformprogrammable

The DN2.63x is a high-performance 16-bit arbitrary waveform generator (AWG) NETBOX offering Ethernet remote control, high resolution and very high sampling rates up to 10 GS/s. It is available in 1- or 2-channel configurations and is designed for simultaneous multi-channel signal generation with per-channel DAC and amplifier stages.

Key features

• Fast 16 bit arbitrary waveform generator
• Available in 1 or 2 channel versions
• Simultaneous signal generation on all channels
• Separate DAC and amplifier per channel
• Output level programmable up to ±500 mV single-ended into 50 Ohm
• Output level programmable up to ±1.0 V differential into 50 Ohm
• Operating modes: Single-Shot, Loop, FIFO, Multiple Replay, ...
• Multi-carrier DDS option available
• On-board memory up to 2 GSamples (8 GSamples option)

Models in the DN2.63x family

• DN2.635-01 — Platform: Ethernet; Analog-Out: 1; Digital-Out: 4; Resolution: 16 Bit; Samplerate: 10 GS/s (1 active channel); Bandwidth: 2.50 GHz; Memory (Max): 2 GSamples (8 GSamples option); Max Output Level: ±500 mV single-ended (±1.0 V differentiell) into 50 ohm; Feature: Multiple Replay; Options: Digital Pulse Generator Option, Multi-Carrier DDS mode.
• DN2.635-02 — Platform: Ethernet; Analog-Out: 2; Digital-Out: 4; Resolution: 16 Bit; Samplerate: 10 GS/s (1 active channel) / 5 GS/s (2 active channel); Bandwidth: 2.50 GHz; Memory (Max): 2 GSamples (8 GSamples option); Max Output Level: ±500 mV single-ended (±1.0 V differentiell) into 50 ohm; Feature: Multiple Replay; Options: Digital Pulse Generator Option, Multi-Carrier DDS mode.
• DN2.636-01 — Platform: Ethernet; Analog-Out: 1; Digital-Out: 4; Resolution: 16 Bit; Samplerate: 10 GS/s (1 active channel); Bandwidth: 3.90 GHz; Memory (Max): 2 GSamples (8 GSamples option); Max Output Level: ±500 mV single-ended (±1.0 V differentiell) into 50 ohm; Feature: Multiple Replay; Options: Digital Pulse Generator Option, Multi-Carrier DDS mode.
• DN2.636-02 — Platform: Ethernet; Analog-Out: 2; Digital-Out: 4; Resolution: 16 Bit; Samplerate: 10 GS/s (1 active channel) / 5 GS/s (2 active channel); Bandwidth: 3.90 GHz; Memory (Max): 2 GSamples (8 GSamples option); Max Output Level: ±500 mV single-ended (±1.0 V differentiell) into 50 ohm; Feature: Multiple Replay; Options: Digital Pulse Generator Option, Multi-Carrier DDS mode.
• DN2.632-02 — Platform: Ethernet; Analog-Out: 2; Digital-Out: 4; Resolution: 16 Bit; Samplerate: 3.20 GS/s (1 active channel) / 3.20 GS/s (2 active channel); Bandwidth: 1.40 GHz; Memory (Max): 2 GSamples (8 GSamples option); Max Output Level: ±500 mV single-ended (±1.0 V differentiell) into 50 ohm; Feature: Multiple Replay; Options: Digital Pulse Generator Option, Multi-Carrier DDS mode.
• DN2.632-01 — Platform: Ethernet; Analog-Out: 1; Digital-Out: 4; Resolution: 16 Bit; Samplerate: 3.20 GS/s (1 active channel); Bandwidth: 1.40 GHz; Memory (Max): 2 GSamples (8 GSamples option); Max Output Level: ±500 mV single-ended (±1.0 V differentiell) into 50 ohm; Feature: Multiple Replay; Options: Digital Pulse Generator Option, Multi-Carrier DDS mode.

Caractéristiques / spécifications techniques

• Resolution: 16 bit
• Maximum samplerate: up to 10.0 GS/s (varies by model and number of active channels: e.g. 10 GS/s for single active channel, 5 GS/s per channel for 2-channel 10 GS/s variants)
• Analog bandwidth: model-dependent (examples on page: 1.40 GHz, 2.50 GHz, 3.90 GHz)
• Channels: 1 or 2 (simultaneous generation on all channels)
• Per-channel architecture: separate DAC and amplifier per channel
• Output levels: programmable up to ±500 mV single-ended into 50 Ω; up to ±1.0 V differential into 50 Ω
• Digital outputs: 4 (as shown in family table)
• On-board memory: 2 GSamples standard; optional 8 GSamples upgrade
• Operating modes: Single-Shot, Loop, FIFO, Multiple Replay, and others
• Platform / remote control: Ethernet (NETBOX)
• Optional features: Digital Pulse Generator Option; Multi-Carrier DDS mode (DDS option)
