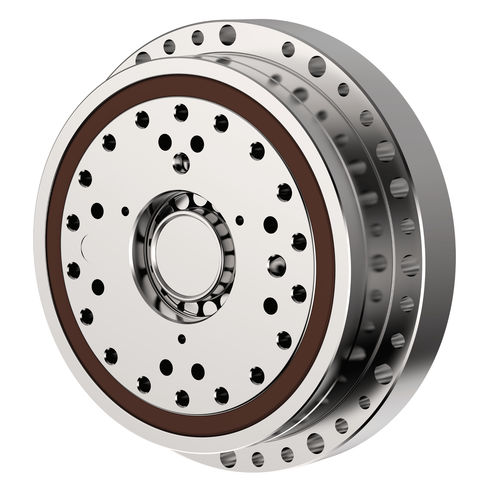

High-precision gear reducer TwinSpin E Seriescycloidalcoaxial200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cycloidal
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm
- Mounting
- shaft-mounted, flange-mounted
- Configuration
- compact, modular, flange, miniature
- Number of stages
- single-stage
- Performance
- high-precision, high-performance, low-noise, high-efficiency, high-torque, maintenance-free, high-rigidity, zero-backlash, high-capacity
- Applications
- for robots, for wheel and track drives, winch, for machinery, for shafts, for milling applications, for valves, for servo motors, for rack-and-pinion drives, for printing machines, for automation, machine, for marine applications, for medical devices, for AGV, for lathes, for textiles, antenna, for gear wheels, for pharmaceutical products, for material handling equipment, for food industry machinery, for height adjustment, for doors, for actuators, for welding machines, drive, for valves, centrifuge, for electrical drives, packaging machine, for robotics, industrial, for machine tools, for milling machines, for grinding machines, for automotive applications, for the food industry, for electric motors, for rotary tables, for motor coupling, for pulley drives, for telecommunications equipment, for injection molding machines, for harsh environments
- Other characteristics
- reversible, NEMA 23, ATEX, NEMA 34, single reduction, multi-turn, vertical, custom-made, IP67, NEMA 17, IP65, mechanical transmission, high-temperature, high-quality, low-speed
- Rotational speed
2,000 rpm
(12,566.3706 rad.min-1)
Description
The E series represents a wide range of TwinSpin high precision reduction gears with a flange shaped case. These gears comprise an accurate reduction mechanism and high-capacity radial and axial cylindrical bearings. This design of reduction gears allows the mounting of the load directly on the output flange or the case without a need of additional bearings.
The E series high precision reduction gears are characterized by a modular design, which allows the mounting of your desirable type of motor to the reduction gear by means of a connection flange.
The E series includes TwinSpin high precision reduction gears that are not completely sealed; an inlet flange and a gasket kit have to be used for the sealing. Upon the customer’s request, SPINEA is able to supply a completely sealed reduction gear with a flange according to the customer’s motor.
