cycloidal gear reducer / coaxial / 1 - 2 kNm / zero-backlash
H series

Add to MyDirectIndustry favorites
Compare this product
cycloidal gear reducer / coaxial / 1 - 2 kNm / zero-backlash cycloidal gear reducer / coaxial / 1 - 2 kNm / zero-backlash - H series
{{requestButtons}}

Characteristics

  • Type:

    cycloidal

  • Shaft orientation:

    coaxial

  • Torque:

    1 - 2 kNm

  • Performance:

    zero-backlash, high-precision, precision

  • Other characteristics:

    hollow-shaft, for shafts

  • Rotational speed:

    Min.: 900 rpm (5,654.87 rad.min-1)

    Max.: 2,500 rpm (15,707.96 rad.min-1)

Description

Series

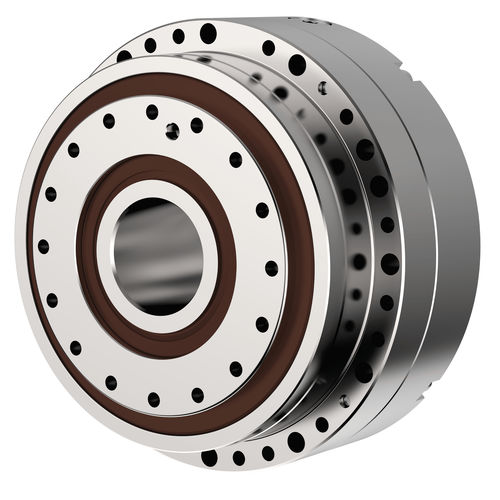

The H series represents TwinSpin high precision reduction gears with through-holes in the shafts, also known as the hollow-shaft version. Cables, tubes with compressed air, drive shafts and so on can be led through the hole in the shaft of the gear.

The H series high precision reduction gears comprise an accurate reduction mechanism and high-capacity radial and axial cylindrical bearings. This design of the reduction gears allows the mounting of the load directly on the output flange or case without a need of additional bearings.

The H series is completely sealed and filled with grease for lifetime.

Advantages
large input shaft diameter
fully sealed
zero backlash reduction gears
high moment capacity
excellent positioning accuracy and positioning repeatibility
high torsional and tilting stiffness
small dimensions and weight
high reduction ratios
high effeciency
long lifetime
easy assembly
